- Protects electrical installations against earth fault currents
- Type AC RCD with a rated sensitivity of 30mA
- Ideal for use in a BG consumer unit
- The CUR4030 has a 40A rating
- BG double pole RCD
Product Information

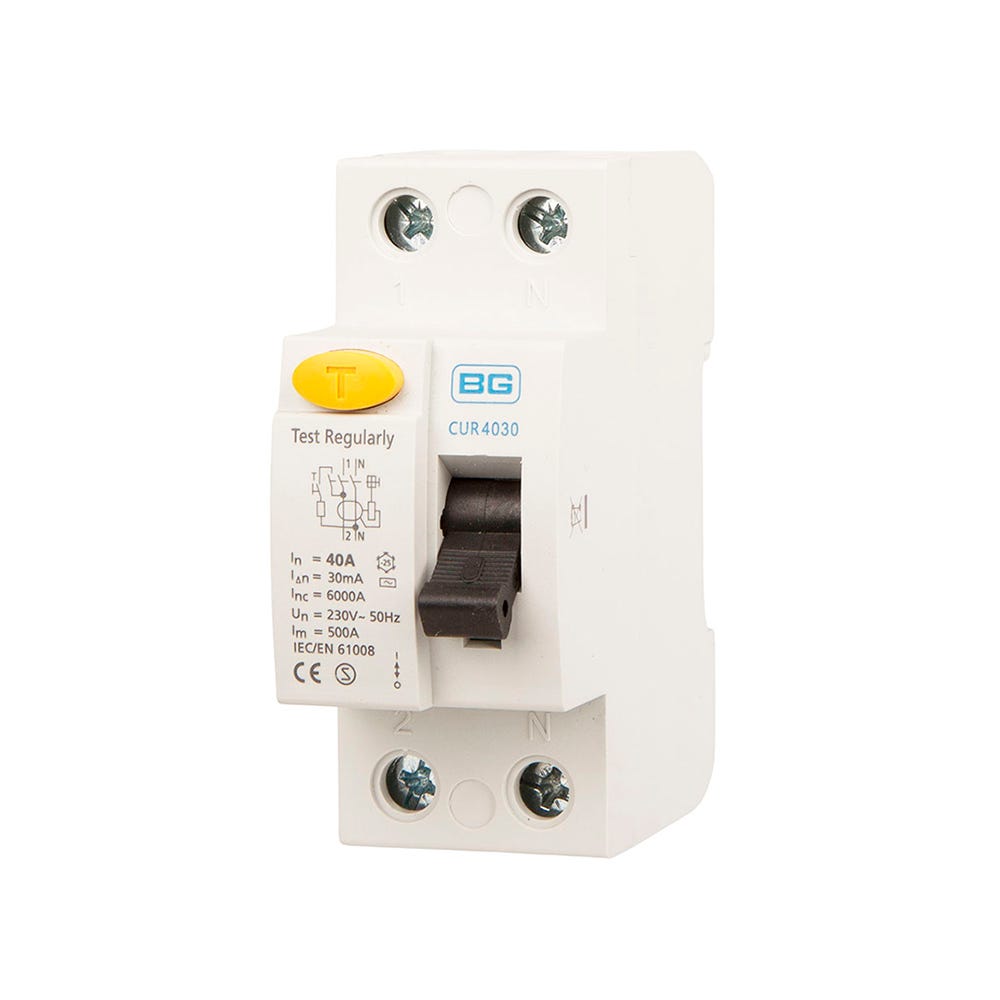

The BG Double Pole RCD is suitable for installation in BG consumer units. The CUR4030 provides protection from earth fault currents. This RCD has a 40A rating and a 30mA rated sensitivity.
Key Features
- Type AC, compatible with installations where there are residual sinusoidal alternating currents
- Features a positive contact status indicator that shows when there is a 4mm contact gap
- Compliant with 18th Edition Wiring Regulations when installed correctly
- Stylish modern profile complements the BG circuit protection range
- Ideal for residential and light commercial applications
- Provides earth fault current protection
- Resistant to current surges
- Has a lockable dolly switch
- DIN rail mounted
- Two modules
- Double pole
Technical Information
- Ambient Temperature: -25 To +40 Degrees Celsius
- Installation: 35mm DIN Rail Mounted
- Width Including Switch: 72.5mm
- Trip: Electro/Magnetic Release
- Standard: EN/IEC 61008-1
- Terminal Capacity: 35mm²
- Number Of Poles: 2 (1+N)
- Rated Sensitivity: 30mA
- Terminal Torque: 2.5Nm
- Breaking Capacity: 6kA
- Rated Voltage: 230V
- Thickness: 35mm
- Frequency: 50Hz
- IP Rating: IP20
- Height: 87mm
- RCD Type: AC
- Rating: 40A
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | CUR4030A-01 |
| Amperage: | 40A |
| Circuit Protection Type: | RCD Type AC |
| Shipping Weight Kg: | 0.24 kg |
| Shipping Dimension 1: | 85 mm |
| Shipping Dimension 2: | 85 mm |
| Shipping Dimension 3: | 35 mm |
