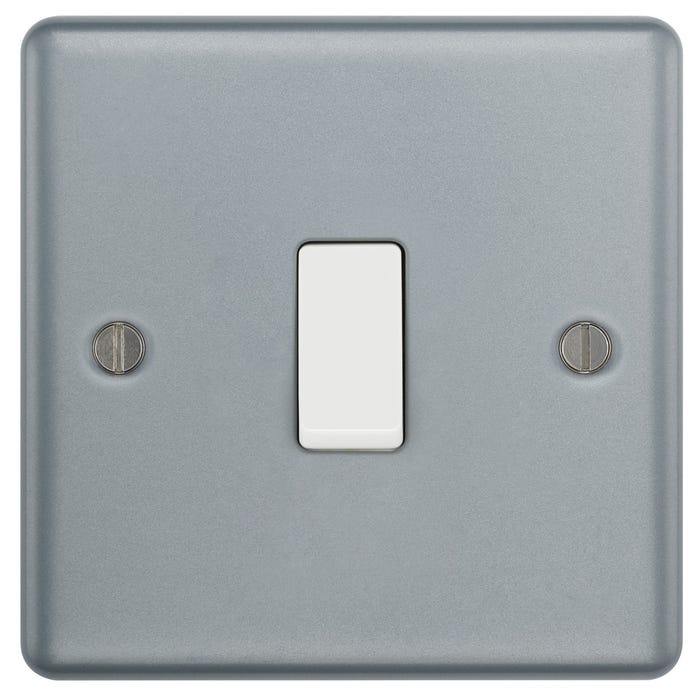

BG Nexus 20A 1 Gang 2 Way Light Switch Metal Clad MC512

SKU
L074070

BG Nexus 20A 1 Gang 2 Way Light Switch Metal Clad MC512

SKU
L074070
Click & Collect
Special Price £2.96 Inc VAT Regular Price £3.48 Inc VAT
Web Exclusive Price
  • This BG Nexus 20A 1 Gang 2 Way Light Switch is made of heavy gauge steel
  • Has a mounting box, earth terminal, captive backed-out terminal screws, and fixing screws
  • The 2 way switching allows for a second switch position in a circuit
  • Multiple 20mm knockouts
  • 16AX inductive rating
  • 86 x 86 x 50mm

Product Information

This BG Nexus Metal Clad 20A 1 Gang 2 Way Light Switch is a robust solution for commercial and industrial electrical applications. The light switch comes with a mounting box, earth terminal, and captive backed-out terminal screws. It has a 16AX inductive rating.

Key Features

  • The mounting box has x1 20mm knockout on each side and on the rear face
  • The 2 way switching allows for a second switch position in a circuit
  • Features captive backed-out terminal screws to prevent screw loss
  • Comes with installation instructions and fixing screws
  • Suitable for industrial and commercial environments
  • Designed with a flat profile and rounded edges
  • Scratch-resistant epoxy powder coating
  • Made from durable heavy gauge steel

Technical Information

  • Terminal Capacity: 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
  • Inductive Rating: 16AX
  • Size: 86 x 86 x 50mm
  • IP Rating: IP20
  • Rating: 20A

Approvals

  • BS EN 60669-1

Guarantee

  • 25-year manufacturer's warranty

Product Specifications

Technical Specification
Brand: BG British General
MPN: MC512-01
Amperage: 20A
Colour: Steel
Finish: Metal Clad
Gangs: 1 Gang
Ip Rating: IP20
Screwless: Screwed
Switch Type: Light Switch
Switches And Sockets Type: Switch
Shipping Weight Kg: 0.25 kg
Shipping Dimension 1: 165 mm
Shipping Dimension 2: 145 mm
Shipping Dimension 3: 52 mm
