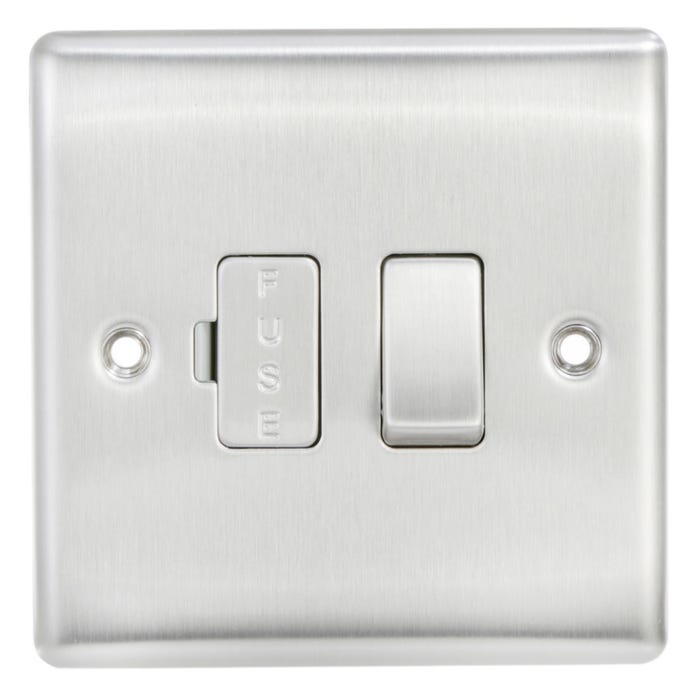

BG 13A Switched Fused Spur Unit Brushed Steel NBS50

SKU
L048591
Quantity Discount

BG 13A Switched Fused Spur Unit Brushed Steel NBS50

In stock
SKU
L048591
Click & Collect

Need More, Save More

  • Up to 4£5.94Inc VAT
  • 5 & Over £5.52 Inc VAT
£5.94 Inc VAT
  • This BG Nexus switched fused connection unit has a 13A rating
  • Comes with colour-coded terminals and backed-out captive screws
  • 86mm x 86mm x 28.8mm in size
  • Stylish brushed steel finish
  • Includes a plastic gasket
28 In Stock
New Southgate
26 in stock
Park Royal
0 in stock
Staples Corner
1 in stock

Product Information

This BG Nexus 13A Switched Fused Connection Unit has a stylish brushed steel finish and conveniently colour-coded terminals for quick and easy installation.

Key Features

  • Includes colour-coded terminals with backed-out captive screws for convenience
  • Has an integrated plastic gasket which protects the metal edges from moisture
  • Supplied with colour-matched fixing screws
  • Slim profile with softly rounded edges
  • Modern brushed steel finish
  • 2 Earth terminals

Technical Information

  • Terminal Capacity: 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
  • Minimum Mounting Box Depth: 35mm
  • Size: 86mm x 86mm x 28.8mm
  • Minimum Contact Gap: 3mm
  • Switch Type: Double Pole
  • Fixing Centres: 60.3mm
  • Rating: 13 Amp 250V
  • Finish: Brushed Steel

Matching Products

Approvals

  • BS 1363 Part 4

Guarantee

  • Guaranteed against faulty materials and workmanship for 25 years from the date of delivery

Product Specifications

Technical Specification
Brand: BG British General
MPN: NBS50-01
Amperage: 13A
Colour: Steel
Finish: Brushed Steel
Gangs: 1 Gang
Screwless: Screwed
Switches And Sockets Type: Fused Spur
Shipping Weight Kg: 0.119 kg
Shipping Dimension 1: 86 mm
Shipping Dimension 2: 86 mm
Shipping Dimension 3: 31 mm
