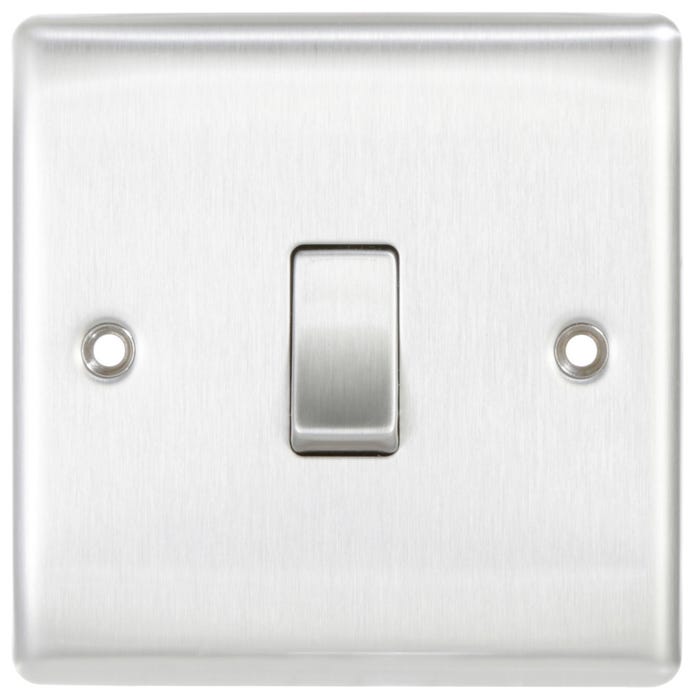

- This BG Nexus 20A 1 Gang 2 Way Light Switch comes in a beautiful brushed steel finish
- Has an in-built plastic gasket, backed out captive screws and colour-matched fixing screws
- 86 x 86 x 21.2mm in size
- Slim modern profile
Product Information
This BG Nexus 20A 1 Gang 2 Way Light Switch has a stunning brushed steel finish and is suitable for both domestic and commercial installations. The light switch comes with colour-matched fixing screws for a neat appearance.
Key Features
- Includes a fixed integrated plastic gasket to protect the switch's metal edges from moisture
- Ideal for both commercial and domestic installations
- Conveniently comes with backed out captive screws
- Supplied with colour-matched fixing screws
- Elegant brushed steel finish
- Has a sleek modern profile
Technical Information
- Terminal Capacity: 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
- Inductive Load: 16AX (no derating for inductive or fluorescent loads)
- Minimum Mounting Box Depth: 16mm
- Minimum Contact Gap: 3.0mm
- Size: 86 x 86 x 21.2mm
- Fixing Centres: 60.3mm
- Rating: 20 Amp, 250V
- Finish: Brushed Steel
- Brand: BG
Matching Products
Approvals
- BS EN 60669-1
Guarantee
- Guaranteed against faulty materials and workmanship for 25 years from the date of delivery
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | NBS12-01 |
| Amperage: | 20A |
| Colour: | Steel |
| Finish: | Brushed Steel |
| Gangs: | 1 Gang |
| Screwless: | Screwed |
| Switch Type: | Light Switch |
| Switches And Sockets Type: | Switch |
| Shipping Weight Kg: | 0.115 kg |
| Shipping Dimension 1: | 86 mm |
| Shipping Dimension 2: | 86 mm |
| Shipping Dimension 3: | 31 mm |
