SKU
L073146
£3.59
Inc VAT
- This BG Grid 20A Centre Off Switch Module controls lighting or electrical circuits
- Has captive-backed-out terminal screws
- For use with the Nexus Grid system
- Matt black finish
- 2 way, single pole
- BS EN 60669-2-1
- 25 x 54 x 26mm
Product Information

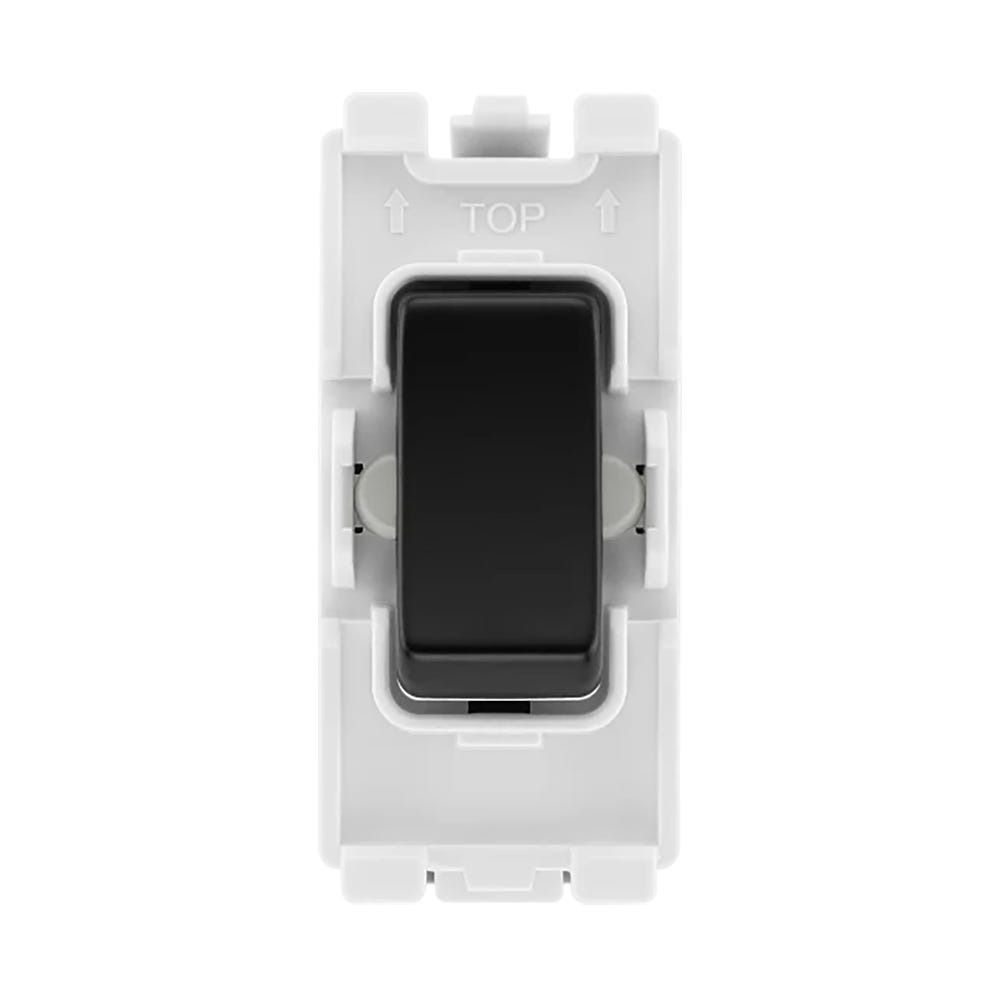

This BG Grid Matt Black 20A 2 Way Single Pole Switch Module controls lighting or electrical circuits within the Nexus Grid system. It is used with a compatible grid frame and front plate, allowing you to create a customised switch layout for various installations. The 2 way switching function allows a circuit to be controlled from two switch locations, such as at the top and bottom of stairs, whilst the matt black finish delivers a bold, contemporary appearance.
Key Features
- 20A 2 way single pole switch allows a lighting or electrical circuit to be controlled from two separate switch locations
- The centre-off position provides a neutral off setting, with up and down switching positions used to turn on two separate circuits
- Designed for use with the Nexus Grid system, enabling flexible and customisable switch layouts
- Captive-backed-out terminal screws make wiring quicker and easier during installation
- Matt black finish offers a sleek, modern look suited to contemporary interiors
- Clips securely into a compatible grid frame and front plate for a neat finish
- Supplied with fixing screws and clear installation instructions
Technical Information
- Terminal Capacity: 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm², 1 x 4.0mm²
- Minimum Mounting Box Depth: 25mm
- Rating: 20 Amp, 20AX inductive rated
- Operating Voltage: 220-240V
- Switch Style Type: Rocker
- Finish: Matt black
- Size: 25 x 54 x 26mm
- IP Rating: IP20
Approvals
- BS EN 60669-2-1
- WEEE
- UKCA
- RoHS
- CE
Guarantee
- 25-year manufacturer's warranty
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | RFB12-01 |
| Amperage: | 20A |
| Colour: | Black |
| Finish: | Matt Black |
| Ip Rating: | IP20 |
| Screwless: | Screwed |
| Switches And Sockets Type: | Switch |
| Shipping Weight Kg: | 0.025 kg |
| Shipping Dimension 1: | 147 mm |
| Shipping Dimension 2: | 77 mm |
| Shipping Dimension 3: | 62 mm |
