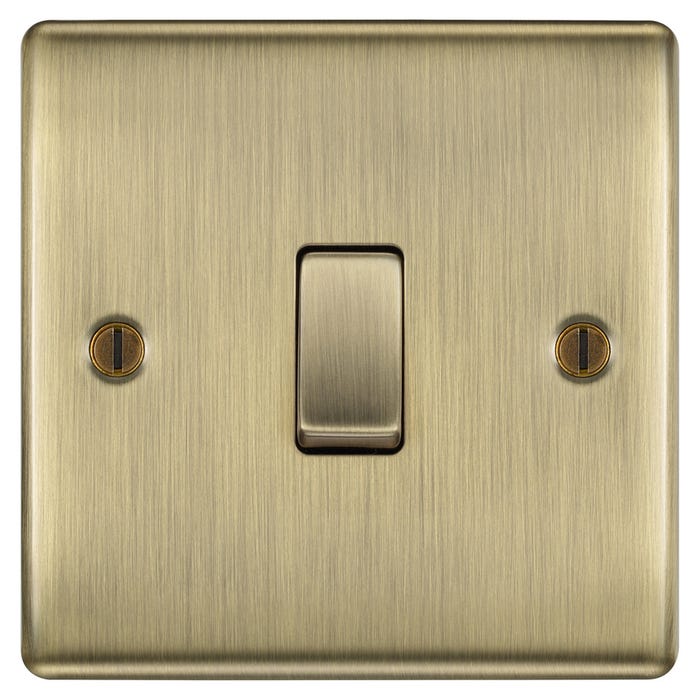

- This BG Nexus 20A 16AX Intermediate Light Switch comes in an antique brass finish
- Has an in-built plastic gasket, backed out terminal screws and colour-matched fixing screws
- Intermediate light switches allow a single light to be controlled from multiple switches (this switch should be used as the middle switch)
- 86 x 86 x 23.5mm in size
- Slim modern profile
Product Information
This BG Nexus 20A 16AX Intermediate Light Switch has an antique brass finish and is suitable for both domestic and commercial installations. The light switch comes with colour-matched fixing screws for a neat appearance. Intermediate light switches are commonly used in hallways where a single light is controlled by several light switches installed in different locations.
Key Features
- Intermediate switches provide control of a single light from different locations. (The intermediate switch should be installed between the other switches in the circuit)
- Includes a fixed integrated plastic gasket to protect the switch's metal edges from moisture
- Ideal for both commercial and domestic installations
- Conveniently comes with backed out terminal screws
- Supplied with colour-matched fixing screws
- Sophisticated antique brass finish
- Has a sleek modern profile
Technical Information
- Terminal Capacity: 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
- Inductive Load: 16AX (no derating for inductive or fluorescent loads)
- Minimum Mounting Box Depth: 16mm
- Size: 86 x 86 x 23.5mm
- Fixing Centres: 60.3mm
- Rating: 20 Amp, 250V
- Finish: Antique Brass
Matching Products
Approvals
- BS EN 60669-1
Guarantee
- Guaranteed against faulty materials and workmanship for 25 years from the date of delivery
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | NAB13-01 |
| Amperage: | 20A |
| Colour: | Brass |
| Finish: | Antique Brass |
| Gangs: | 1 Gang |
| Ip Rating: | IP20 |
| Screwless: | Screwed |
| Switch Type: | Light Switch |
| Switches And Sockets Type: | Switch |
| Shipping Weight Kg: | 0.122 kg |
| Shipping Dimension 1: | 153 mm |
| Shipping Dimension 2: | 120 mm |
| Shipping Dimension 3: | 27 mm |
