SKU
L073573
£5.94
Inc VAT
- This BG Nexus switched fused connection unit has a 13A rating
- Comes with colour-coded terminals and backed-out captive screws
- For spur circuits and hard wired appliances
- 86mm x 86mm x 28.9mm in size
- Stylish antique brass finish
Product Information

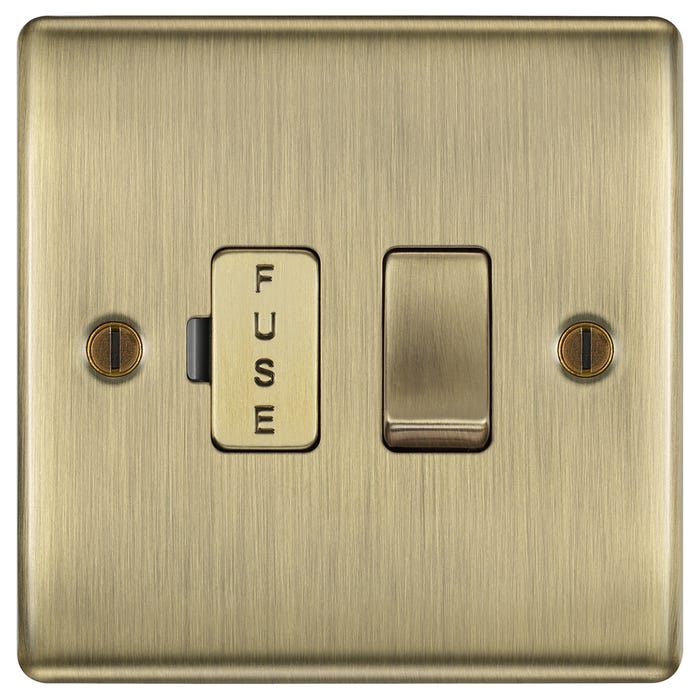

This BG Nexus 13A Switched Fused Connection Unit has an antique brass finish and conveniently colour-coded terminals for quick and easy installation.
Key Features
- Includes colour-coded terminals with backed-out captive screws for convenience
- Has an integrated plastic gasket that protects the metal edges from moisture
- Designed for spur circuits and hard wired appliances
- The fuse cover is embossed with the word 'fuse'
- Supplied with colour-matched fixing screws
- Slim profile with softly rounded edges
- Elegant antique brass finish
- 2 Earth terminals
Technical Information
- Terminal Capacity: 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
- Minimum Mounting Box Depth: 35mm
- Size: 86mm x 86mm x 28.9mm
- Switch Type: Double Pole
- Fixing Centres: 60.3mm
- Rating: 13 Amp 250V
- Finish: Antique Brass
Matching Products
Approvals
- BS 1363 Part 4
Guarantee
- Guaranteed against faulty materials and workmanship for 25 years from the date of delivery
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | NAB50-01 |
| Amperage: | 13A |
| Colour: | Brass |
| Finish: | Antique Brass |
| Ip Rating: | IP20 |
| Screwless: | Screwed |
| Switches And Sockets Type: | Fused Spur |
| Shipping Weight Kg: | 0.143 kg |
| Shipping Dimension 1: | 153 mm |
| Shipping Dimension 2: | 120 mm |
| Shipping Dimension 3: | 31 mm |
