- The All LED 9-18W Constant Current LED Driver is for dimmable LEDs
- Compatible with 9-18 x 1W / 3-6 x 3W LED / 2 x 7W LED operating at 350mA
- For a Maximum DC loom length of 20m using 1.5mm² cables
- Regulates input voltage for flicker-free lighting
- IP20 rated, making it suitable for indoor use
Product Information

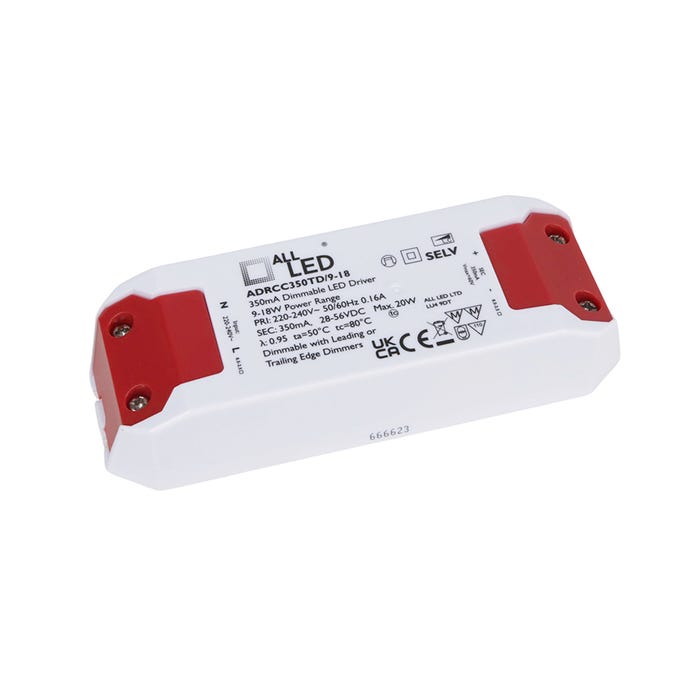

The All LED 8-18W Dimmable LED Driver acts as a power source that regulates the current supplied to LED lights. By providing a constant current of 350mA, the driver protects the lights from input voltage fluctuations, resulting in flicker-free and uniform LED brightness.
Key Features
- Supports up to: 9-18 x 1W / 3-6 x 3W LED / 2 x 7W LED operating at 350mA
- Maximum DC loom length of 20m using 1.5mm² cables
- Has loop-in loop-out terminals for easy wiring
- Compatible with mains dimmable LEDs
- IP20 rated and suitable for indoor use
- Large terminals for easy installation
- Ensures flicker-free dimming
- Compact design
Technical Information
- Operating Temperature: -20˚C To +50˚C
- Output Power Range: 9-18W
- Input Frequency: 50/60Hz
- Input Voltage: 220-240V
- Output Current: 350mA
- Size: 127 x 44 x 28mm
- MPN:ADRCC350TD/9-18
- Input Current: 0.16A
- Power Factor: 0.95
- Efficiency: ≥81%
- IP Rating: IP20
Guarantee
- 3-year manufacturer's guarantee
Product Data Sheet (PDF)
Instruction Manual (PDF)
Product Specifications
| Brand: | ALL LED |
|---|---|
| MPN: | ADRCC350TD/9-18 |
| Colour: | White |
| Dimmable: | Dimmable |
| Finish: | White |
| Ip Rating: | IP20 |
| Lighting Type: | LED Driver |
| Voltage: | 230/240V |
| Wattage: | 18W |
| Shipping Weight Kg: | 0.151 kg |
| Shipping Dimension 1: | 130 mm |
| Shipping Dimension 2: | 45 mm |
| Shipping Dimension 3: | 40 mm |
