- The All LED Nano 2-4W Constant Current LED Driver is for dimmable LEDs
- Compatible with 4 x 1W LEDs or 1 x 3W LED operating at 350mA
- Regulates input voltage for flicker-free lighting
- IP55 rated, making it suitable for outdoor use
Product Information

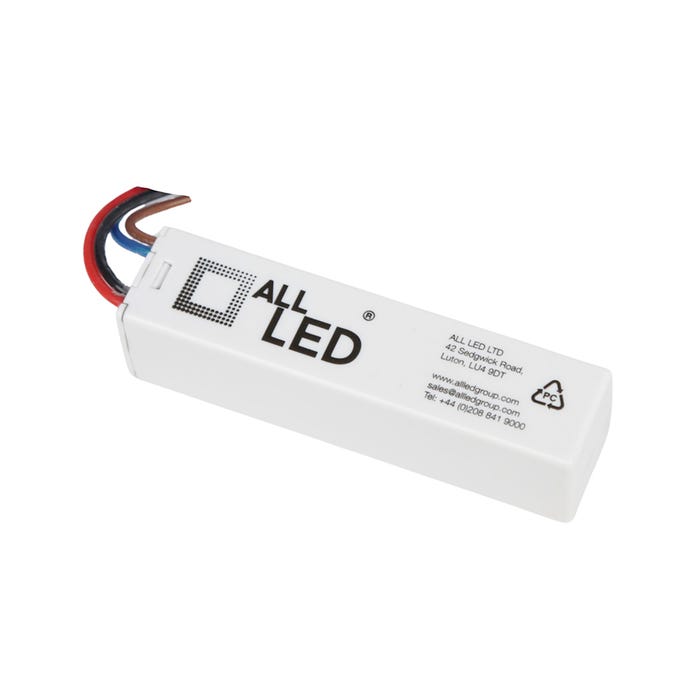

The All LED Nano 2-4W Dimmable LED Driver acts as a power source that regulates the current supplied to LED lights. By providing a constant current of 350mA, the driver protects the lights from input voltage fluctuations, resulting in flicker-free and uniform LED brightness.
Key Features
- Supports up to 4 x 1W LEDs operating at 350mA or 1 x 3W LED operating at 350mA
- Compact size allows the driver to fit into 28mm cavities
- Maximum DC loom length of 200m using 1.5mm² cables
- IP55 rated and suitable for outdoor use
- Compatible with mains dimmable LEDs
- Ensures flicker-free dimming
- Supplied pre-wired
Technical Information
- Maximum Load: 1-4W (On/Off) 2-4W (Dim)
- Operating Temperature: -10˚C To +40˚C
- MPN: ADRCC350NANOTD/2-4
- Output Voltage: 6-12V DC
- Input Voltage: 220-240V
- Output Current: 350mA
- Size: 79 x 19.5 x 18mm
- IP Rating: IP55
Guarantee
- 3-year manufacturer's guarantee
Product Data Sheet (PDF)
Instruction Manual (PDF)
Product Specifications
| Brand: | ALL LED |
|---|---|
| MPN: | ADRCC350NANOTD/2-4 |
| Colour: | White |
| Dimmable: | Dimmable |
| Finish: | White |
| Ip Rating: | IP55 |
| Lighting Type: | LED Driver |
| Voltage: | 230/240V |
| Wattage: | 4W |
| Shipping Weight Kg: | 0.073 kg |
| Shipping Dimension 1: | 120 mm |
| Shipping Dimension 2: | 48 mm |
| Shipping Dimension 3: | 25 mm |
