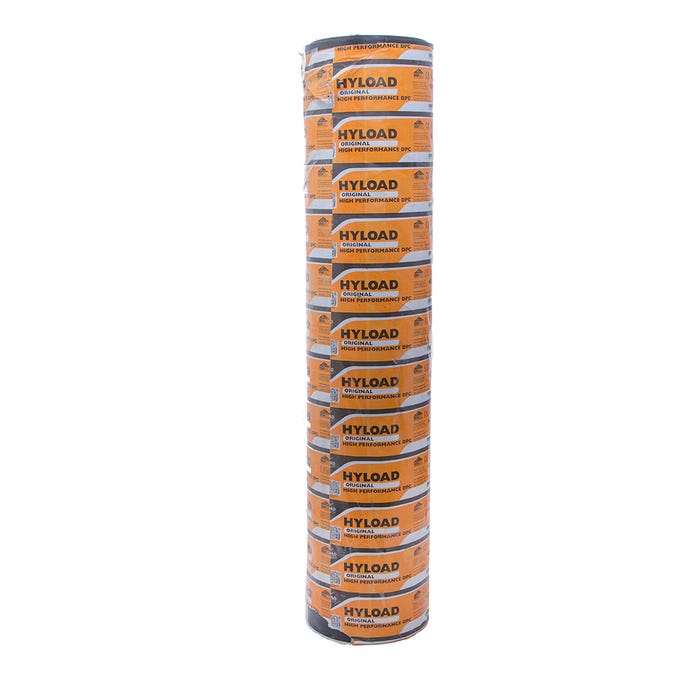

- 900mm IKO Hyload Original DPC Damp Proof Course 20m
- Ideal for damp proofing masonry solid and cavity walls
- Prevents the passage of moisture rising
Product Information
This 900mm IKO Hyload Original DPC Damp Proof Course 20m is a highly flexible polymeric DPC sheet ideal for damp-proofing walls of brick, block, stonework or concrete in both solid and cavity wall constructions. Prevents the passage of moisture from rising at all levels. Can be used vertically or horizontally, and as a cavity tray. Hyload Original is resistant to compression even under the heaviest of wall loadings, as well as being very easy to handle and install.
Key Features
- Complete range of system components and preformed cloaks
- Can be used vertically or horizontally, and as a cavity tray
- Perfect for use with brick, block, stonework and concrete
- Prevents the passage of moisture from rising at all levels
- Excellent performance under high compressive loads
- Suitable for both solid and cavity wall constructions
- Over 40 years proven reliability
- Easy to handle and install
- Excellent flexibility
- Tough and durable
Technical Information
- Width: 900mm
- Colour: Black
- Length: 20m
Application Instructions
- Installation must follow normal good practice for the detailing of damp proof courses, as set out in the relevant clauses of BS 5628: Part 3: 2001 and must be in accordance with the manufacturer's instructions
- DPC must extend through the full thickness of the wall or wall leaf, including pointing, applied rendering or other facing material and project beyond the external face by 5mm
- DPCs must be sandwiched between an even bed of wet mortar
- Perforations in adjacent courses of brickwork must be completely filled with mortar
- All lap joints in the DPC must have 100mm overlap and be completely sealed
- Hyload preformed cloak units must be used at stop ends, and all corners and changes in level of cavity trays
- When using DPC with boot lintels or similar constructions, it is recommended that the material be installed following the lintel profile
Approvals
- CE marked to EN 14909:2012
- BBA approved (No. 95/3133)
To find out more about the different types of damp and how to fix it, read our Types of Damp and Tips To Tackle It guide page.
Technical Data Sheet (PDF)
User Handbook (PDF)
Product Specifications
Brand: | IKO |
---|---|
MPN: | 31590000 |
Pack Size: | 1 |
Colour: | Black |
Width: | 900mm |
Length: | 20m |
size: | (W)900mm (L)20m |
