75mm x 150mm Speed Pro Masonry Joist Hanger Galvanised Pack of 25

In stock
SKU
H003944
Direct from Supplier
£54.76 Ex VAT
£2.19 Per Unit

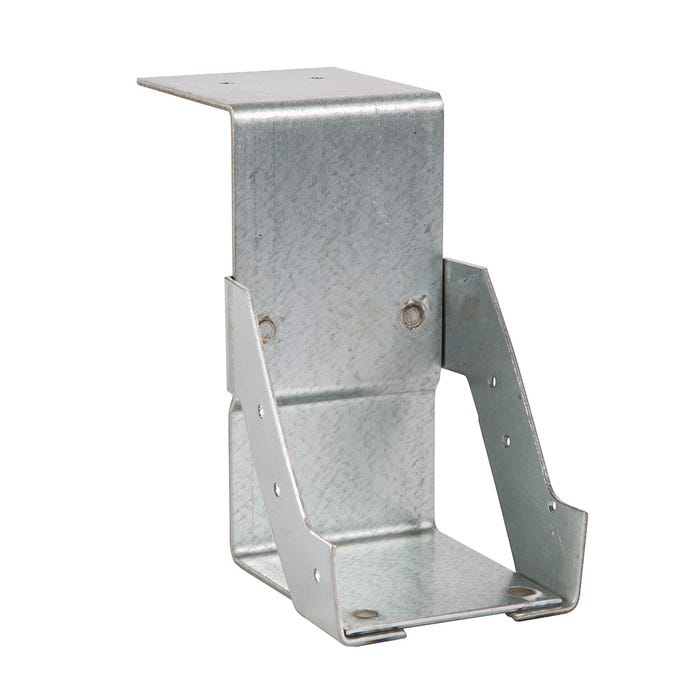

Speed Pro masonry joist hanger is a non-welded joist hanger for supporting timber joists, beams and trussed rafters from masonry walls.

Product Information

Speed Pro Masonry Joist Hanger has remarkable strength without the need for a wide top flange. With no welds the Speed Pro Masonry Hanger is the only single piece masonry joist hanger with a straight top flange. It also has the key advantage that any standard Speed Pro Masonry hanger can be transformed into a hook over from stock. No special tools or rivets required. Just inset the Lock Plate at 90 degrees, rotate and tap into place. The Speed Pro Masonry Joist Hanger is a 2.4mm thick Welded Masonry Joist Hanger for building into walls with a minimum crushing strength of 3.5N/mm2. Hangers can also be fixed to steel beams using appropriate fixings.


Key Features

  • All hangers 150mm deep and over are made 10mm less to ensure joist levels are maintained
  • Minimum block strength 3.5N/mm2
  • Mean Deflection of 1.47mm @ 1/3 of declared value
  • Loads are based on tests conducted by Ceram Building Technology and are determined in accordance with BSEN845
  • Loads are calculated without the Lock Plate
  • 2.4mm Hot dip galvanized coil to S390GD+Z MA, EN 10346:2009 600 g/m2 not oiled, Chemically passivated (Cr- free)
  • Product: Single piece masonry hanger
  • Characteristic value for Eurocode 5: 10.85kN
  • Safe working load for BS5268: 5.42kN long term

Application
The back plate of the hanger should lie flat against the vertical masonry support. The masonry flange should have a minimum of 3 courses (675mm masonry) above and both supporting and above masonry should be allowed to mature before any load is applied. Joist should be square cut and sit tight to the back of the hanger- the maximum gap permitted is 6mm. Nail the side flanges with 30 x 3.75mm galvanised square twist nails or equivalent and use Heavy Duty Restraint Straps to provide lateral Restraint. The masonry flange should always be securely fixed or adequately embedded and should never be placed in dry slots.

Product Specifications

Technical Specification
Brand: Speed Pro
MPN: WM75X150/25
Pack Size: 25
Length: 150mm
Width: 75mm
Thickness: 2.4mm
Material: Galvanised
Weight: 0.6
