- The Gypframe 72 EDC 80 extra deep flange channel holds 70mm studs in the tallest, highest-duty partitions
- Extra deep flanges suit systems above 8000mm high or with a deflection head
- Heavy 0.80mm galvanised UltraSTEEL, A1 fire rated
- Fixes to the floor and soffit to retain the studs
- 3600mm long, 72mm wide
Product Information

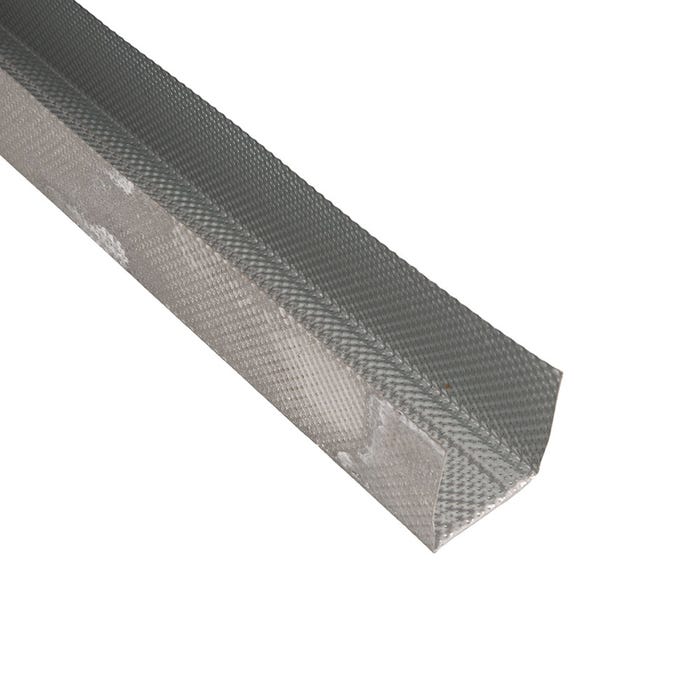

The Gypframe 72 EDC 80 Extra Deep Flange Floor & Ceiling Channel (3600mm) is fixed to the floor and soffit to hold 70mm Gypframe studs in the tallest and most demanding British Gypsum partitions and linings. The extra deep flanges suit systems above 8000mm high, those with a deflection head, or those needing a higher duty rating. Formed from 0.80mm galvanised steel using the patented UltraSTEEL process, this 72mm-wide channel is A1-rated for reaction to fire.
Key Features
- Extra deep 70mm flanges give the studs maximum engagement, suiting very tall partitions and heads that need to allow for significant deflection
- Suits systems with a deflection head or a higher duty rating, as set by the system design
- Made of cold-rolled galvanised steel using the patented UltraSTEEL process for strength
- Retains the 70mm Gypframe studs in partition and lining systems above 8000mm high
- Heavy 0.80mm gauge steel for maximum rigidity in the most demanding systems
- A1 reaction to fire and 210 N/mm² yield strength
- 100% recyclable
Technical Information
- Steel: DX51D + Z140 Galvanised (UltraSTEEL)
- Yield Strength: 210 N/mm²
- Flange Depth: 70mm
- Reaction to Fire: A1
- Weight: 1.31kg/lm
- Length: 3600mm
- Gauge: 0.80mm
- Width: 72mm
- Colour: Steel
Approvals
- BES 6001 responsible sourcing: Excellent
- EN 14195:2005
Product Specifications
| Brand: | British Gypsum |
|---|---|
| MPN: | 5200010134 |
| Pack Size: | 1 |
| Size: | 72mm x 3600mm |
