- Speed Pro's masonry joist hangers support timber joists, beams, and trussed rafters from masonry walls
- Transform into hook over joist hangers without specialist tools
- Made of non-welded galvanised steel
- For 47mm x 200mm timber joists
- Feature straight top flanges
- Comes in a pack of 20
Product Information

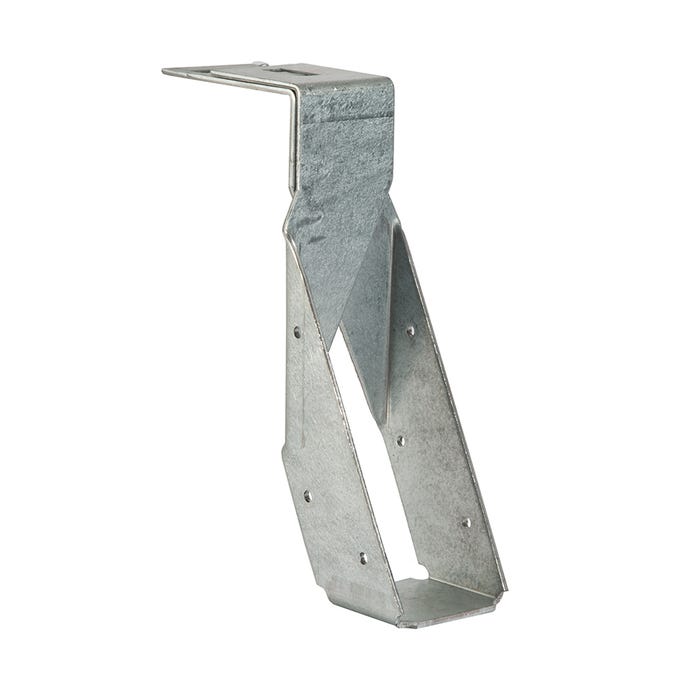

These Speed Pro 47mm x 200mm Masonry Joist Hangers are made from non-welded galvanised steel for excellent durability. The joist hangers support timber joists, beams, and trussed rafters from masonry walls with a minimum crushing strength of 3.5N/mm². The single-piece joist hangers have a 2 in 1 design, transforming into hook over hangers by inserting the lock plates at 90°, rotating, and tapping into place. They are suitable for 47 x 200mm sized timber joists and come in a pack of 20.
Key Features
- All hangers 150mm deep and over are made 10mm less to ensure joist levels are maintained
- For supporting timber joists, beams, and trussed rafters built into masonry walls
- Suitable for masonry with a minimum crushing strength of 3.5N/mm²
- No special tools or rivets are required to install these joist hangers
- Can be transformed into hook over joist hangers
- Fixable to steel beams using appropriate fixings
- Made of corrosion-resistant galvanised steel
- Have straight top flanges
Technical Information
- Characteristic Value for Eurocode 6: 9.7kN
- Safe Working Load for BS5628: 5.4kN
- Compatible Joist Size: 47 x 200mm
- Material: Galvanised Steel
- Tested By: Lucideon Ltd.
- Thickness: 2.4mm
- Brand: Speed Pro
- Quantity: 20
Matching Products
Installation Instructions
- Always use compatible corrosion-resistant fixings and the correct mortar strength to adhere to British Standards
- Place the back plate of the joist hanger flat against the vertical masonry support
- Ensure the masonry flange has at least 3 courses above it (675mm of masonry). Make sure to securely fix the masonry flange or embed it adequately, and never place it in dry slots
- Allow the masonry to fully mature before applying any load to the joist hanger
- The joist should be square cut and sit tight to the back of the hanger with a maximum gap of 6mm
- Nail the side flanges with 30 x 3.75 galvanised square twist nails or other suitable fixings
- Use heavy-duty straps to provide lateral restraint
Approvals
- Galvanised steel to EN10346 DX51D Z600
- BS EN 845-1:2013+A1:2016
Product Disclaimer
Please note that the lock plate is not taken into account when calculating the loads.
Product Specifications
| Brand: | Speed Pro |
|---|---|
| MPN: | FHM50/200/20 |
| Pack Size: | 20 |
| Length: | 200mm |
| Width: | 47mm |
| Thickness: | 2.4mm |
| Material: | Galvanised |
| Weight: | 0.52kg |
