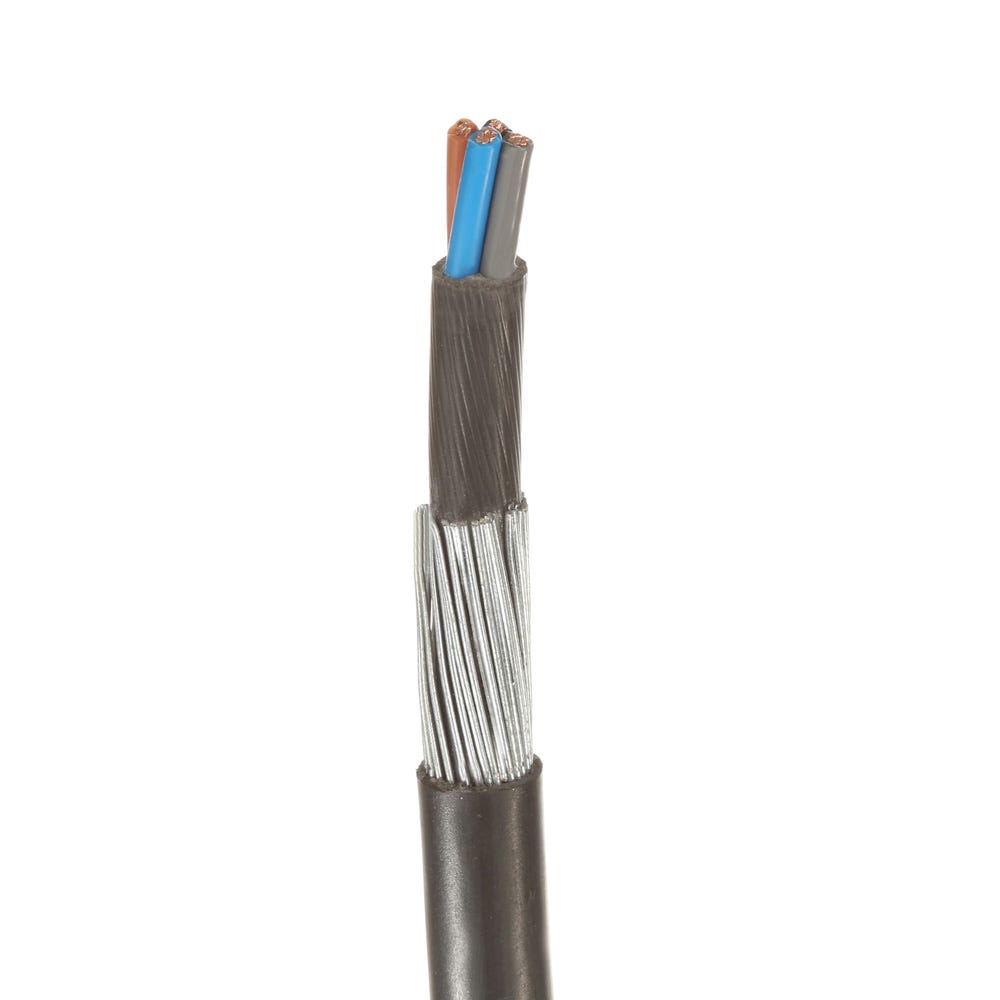

- This 4 core armoured cable has galvanised steel wire armour and a black PVC outer sheath
- The 4mm² armoured cable has black, brown, blue and grey cores
- Ideal for mains supply and use in cable ducting, both indoors, outdoors and underground
- The XLPE cable features stranded plain annealed copper conductors
- Has 7 strands per core
4mm 4 Core Armoured Cable Per Metre SWA XLPE is available to buy in increments of 5
Product Information
This 4mm² 4 Core Armoured Cable is constructed with a layer of steel wire armour. The armour sits below the cable sheath to provide protection to the conductor and insulating layers. The 4mm 4 Core armoured cable is also known as SWA (Steel Wired Armoured) cable. It is designed for mains supply electricity, both externally or buried underground.
Key Features
- XLPE cable is commonly used for power networks and in cable ducting
- Stranded plain annealed copper conductors
- Galvanised steel wire armour
- PVC outer sheath
- XLPE insulated
- PVC bedding
Technical Information
- Insulation: Cross Link Polyethylene (XLPE)
- Core Identification: Brown, Black, Grey, Blue
- Temperature Limits: -15°C To +90°C
- Conductor: Class 2 Stranded Copper
- Bedding: Polyvinyl Chloride: (PVC)
- Armour: Steel Wire Armour (SWA)
- Sheath: Polyvinyl Chloride (PVC)
- Overall Diameter: 15.04mm
- Voltage Rating: 600/100V
- Conductor Size: 4mm²
- Gland Size: 20mm²
- Nylon Cleat Size: 0.6
- Sheath Colour: Black
- Stranding: 7/0.85
- Cores: 4
Matching Products
Approvals
- Flame propagation to BS EN 60332-1
- BASEC approved
- BS EN 60228
- BS 5467
Installation Instructions
- Do not install this cable at temperatures below 0°C or above 60°C
Product Specifications
| Brand: | Builder Depot |
|---|---|
| MPN: | XLPE4X4 |
| Size: | 4mm |
| Cores: | 4 Core |
| Length: | Per Metre |
