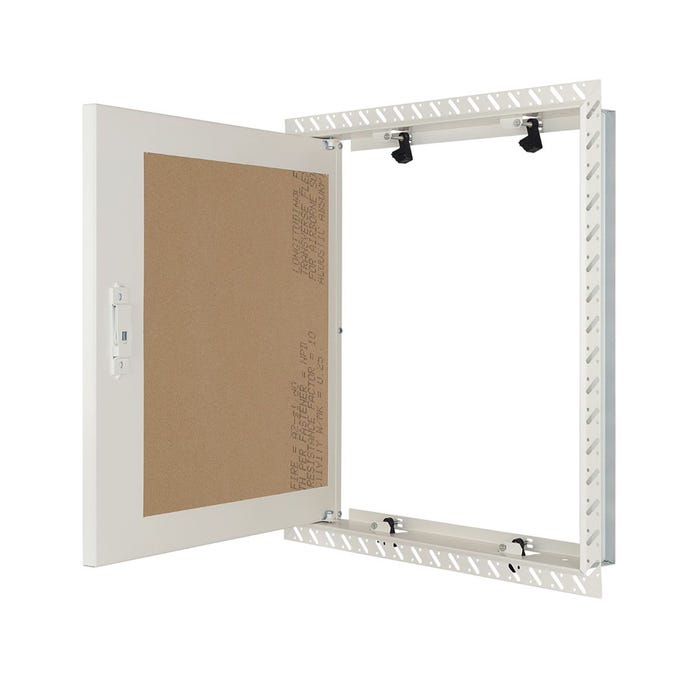

This Plasterboard Faced Access Panel is designed to fit into a structural membrane of a joint-less plasterboard ceiling system, making it ideal for both walls and ceiling applications where regular maintenance to services is required. With a frame manufactured from 0.9mm Zintec Steel and powder coated, this plasterboard-faced panel is built with a Beaded frame for jointing / skim-coat plastering, and holds a 1-hour fire rating. It's also incredibly easy to install - all you need for a perfect installation is a saw, spirit level, pen/pencil and a screwdriver, without the need for a frame to screw your panel in to.

Please note that this panel is for inspection use ONLY and is not suitable for personnel access.

Key Features

• Easy to install
• 1 hour integrity fire rating
• Suitable for walls and ceilings
• Manufactured from Zintec Steel
• Comes with a budget lock and utility key
• Plaster over the frame for a discreet finish
• No need to brace opening / create a frame to install into
• Secure your access panel directly to the plasterboard itself with fixing clamps
• Panels door leaf is locked in place via a Flipfix Patented Flush Lock as standard
• Manufactured with a Beaded frame for tape and jointing / skim-coat plastering

Technical Information

• Colour: RAL 9010
• Lock: Budget lock
• Material: Zintec Steel
• Size (mm): 300 x 300
• Frame width (mm): 25
• Material thickness (mm): 0.9
• Hinge: Spring loaded ClickFix hinge
• Finish: Powder Coated 30% Gloss - not suitable for painting over
• Back frame depth (mm): 60 - ensure enough clearance before installing

Product Includes

• 1x Budget lock
• 1x 3-way Utility Key
• 1x Pop-out Template

Approvals

• The Panel is 1 Hour Fire Rated for integrity up to 600x600mm in a Ceiling & Wall application tested in accordance with the temperature and pressure conditions outlined in BSEN 1363-1: 2012.

Warranty

• 10-year all-inclusive warranty covers everything on the access panel unless failure occurs from misuse
