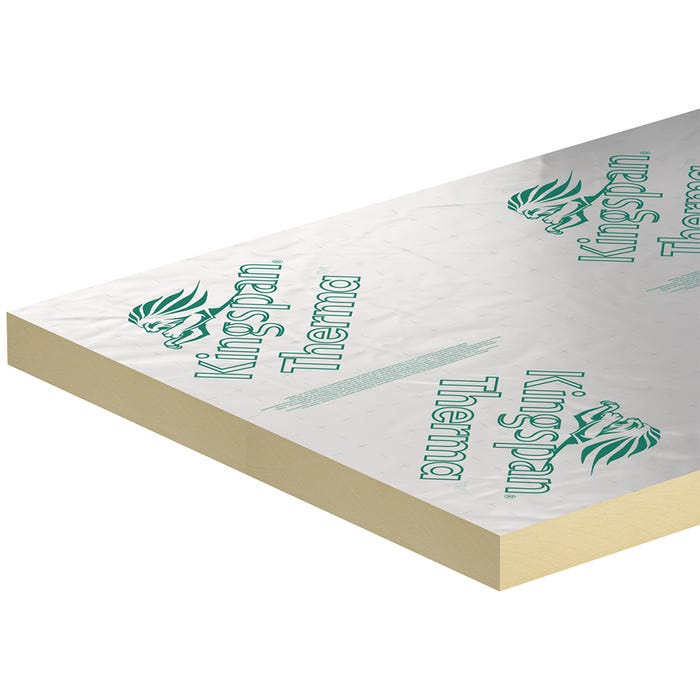

20mm Kingspan Thermapitch TP10 Insulation 2400mm x 1200mm (8' x 4')

SKU
H001627
Quantity Discount

20mm Kingspan Thermapitch TP10 Insulation 2400mm x 1200mm (8' x 4')

In stock
SKU
H001627
Click & Collect

Need More, Save More

  • Up to 14£33.85Inc VAT
  • 15 & Over £28.67 Inc VAT
£33.85 Inc VAT
£11.76 Per M²

Kingspan Thermapitch TP10 is a high performance, rigid thermoset insulation core that's faced on both sides with a composite foil facing to insulate warm roof spaces in pitched roofs, under tiles or slates.

165 In Stock
New Southgate
169 in stock
Park Royal
0 in stock
Staples Corner
0 in stock
West Hampstead
0 in stock

Product Information

Kingspan Thermapitch TP10, for use at rafter level in tiled or slated pitched warm roofs. These performance rigid urethane boards are used for rafter level insulation for tiled or slated pitched warm roof spaces. The boards are faced on both sides with a low emissivity composite foil facing that is highly resistant to the transmission of water vapour. High performance rigid urethane insulation-thermal conductivity 0.022 W/mK on average its use creates 15% more usable warm roof space. There's no condensation risk as it's unaffected by air movement. Kingspan thermapicth TP10 is ideal for new builds and refurbishments.

Key Features

  • High performance rigid thermoset insulation -thermal conductivity 0.022 W/m.K
  • Unaffected by air infiltration
  • Resistant to the passage of water vapour
  • Easy to handle and install
  • Ideal for new build and refurbishment
  • Non-deleterious material
  • Manufactured with a blowing agent that has negligible ODP and low GWP
  • CFC/HCFC Free
  • Robust Details for Part E of the Building Regulations (England & Wales)


Facing
Kingspan Thermapitch TP10 is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture. This reflective, low emissivity surface improves the thermal resistance of any unventilated cavity adjacent to the board.

Standards
Kingspan Thermapitch TP10 is manufactured to the highest standards in accordance with draft BS 4841-5 (Rigid polyurethane (PUR) and polyisocyanurate (PIR) products for building end-use applications. TP10 has a fire rating of Euroclass F.


Visit our handy guide for answers to questions like how much is cavity wall insulation?

Product Specifications

Technical Specification
Brand: Kingspan
MPN: TS120
Pack Size: 1
Size: 1200mm x 2400mm x 20mm
