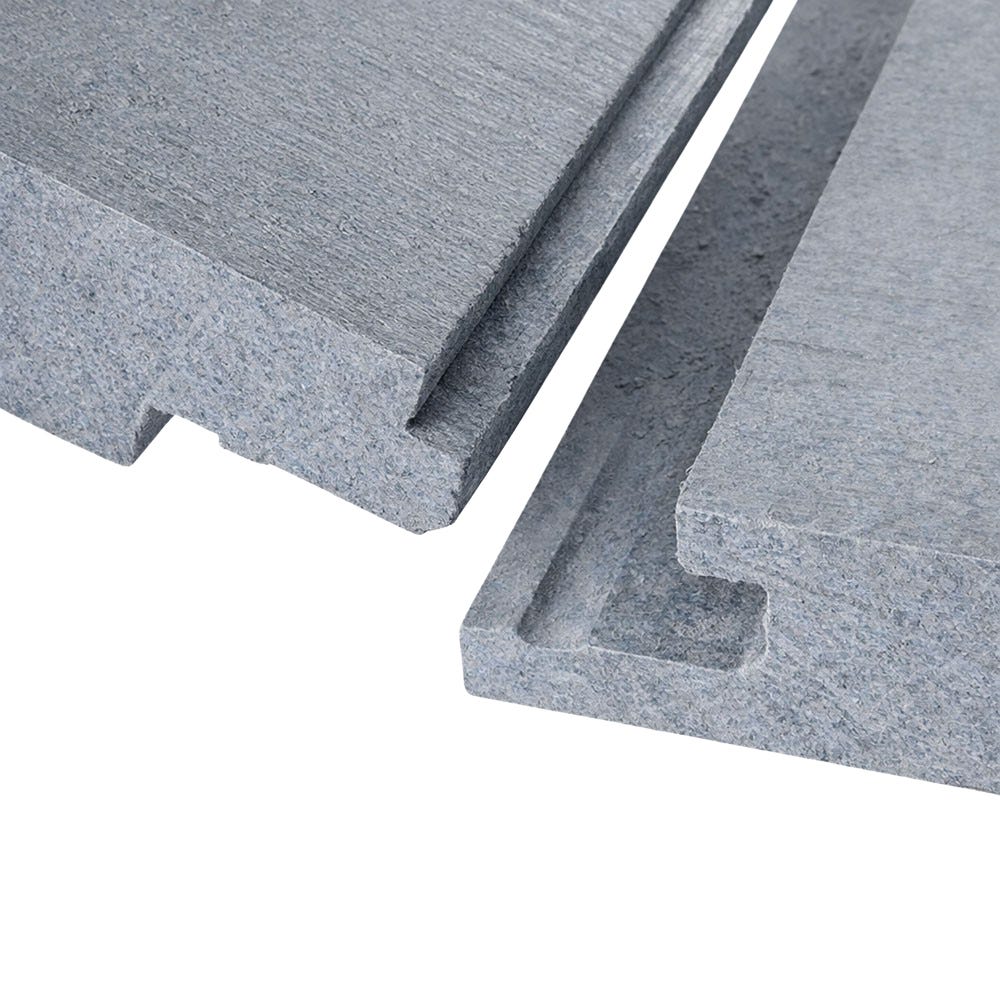

The Cellecta ScreedBoard 20 is a practical alternative to wet screed, designed for compatibility with underfloor heating systems. Quicker, easier, and cleaner to install, it is also thinner than traditional screed, enhancing thermal conductivity for improved heating efficiency. Measuring 1200 x 600 x 20mm, Cellecta ScreedBoard is a go-to choice for efficient flooring solutions.

Key Features

• Made from 100% recycled high-density gypsum and cellulose, this eco-friendly wet screed alternative supports sustainable building practices
• Its thinner profile enhances thermal conductivity, reducing heat loss and ensuring more energy heats the room rather than the screed
• It offers four times lower thermal resistance than chipboard, ensuring excellent thermal efficiency
• Provides a cleaner and easier alternative to traditional screed, eliminating mess and mixing time
• The slim 20mm thickness makes it ideal for projects requiring a space-saving flooring solution
• It is compatible with concrete, steel, and timber floors, making it a versatile flooring option
• The board does not expand or contract when exposed to moisture, maintaining its stability
• Dry screed board is quicker to install than wet screed because it requires no drying time
• The board is designed for interior use only and is not suitable for outdoor applications
• Compatible with underfloor heating systems and designed to maximise heat transfer
• The board contributes to sound reduction, improving acoustic insulation in buildings
• ScreedBoard 20 is made from durable and robust materials for long-lasting results
• Tiles can be applied directly onto the board without the need for additional layers
• The interlocking edges allow for quick and straightforward installation

Technical Information

• Thermal Resistance: 0.05m2K/W
• Size: 1200 x 600 x 20mm
• Board Weight: 18kg
• Brand: Cellecta

Installation Instructions

• All walls and partitions must be isolated from the acoustic treatment using Yelofon FS edging strip to prevent sound flanking
• The board should be installed on a flat surface over insulation panels with high-compressive strength
• The screed board must acclimatise in the installation space for 48 hours before fitting
• A hand saw or circular saw can be used to cut the board to size
• Screws should not be used when installing this product

Storage

• Pallets should not be stacked on top of each other to prevent damage to the product
• ScreedBoard 20 should be stored in a dry environment on a flat, level base

Approvals

• Fire Rating to Class A1 under BS EN 13501-1
• E-FS-3, E-FT-5, E-FT-6 and FFT4 compliant
