1mm 3 Core and Earth Cable 100m Drum 6243Y

SKU
L001993

1mm 3 Core and Earth Cable 100m Drum 6243Y

In stock
SKU
L001993
Click & Collect
£55.80 Inc VAT
£0.56 Per M

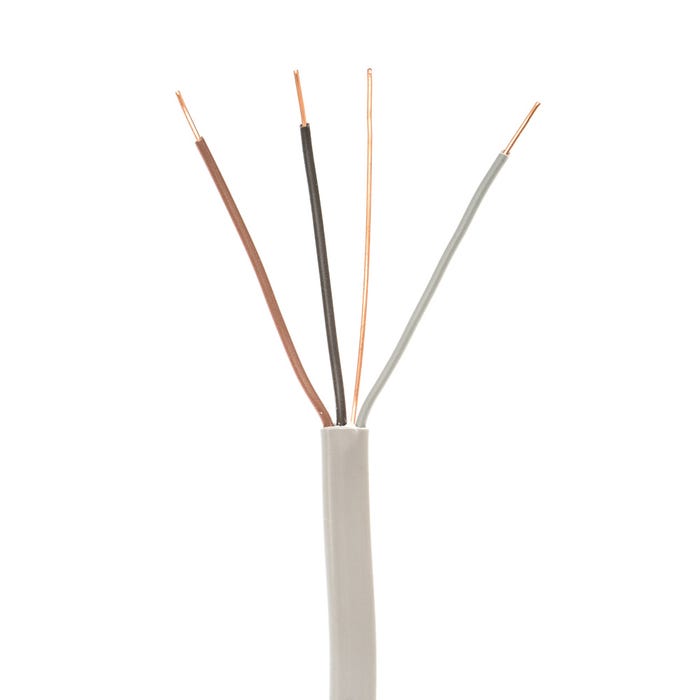

  • This 1mm² 3 Core and Earth Cable has brown, black and grey cores with a bare earth
  • Features a flat shape for simpler installation
  • Solid plain annealed copper conductors
  • The cable comes in a 100m drum
  • The 6243y PVC outer sheath is grey
62 In Stock
New Southgate
62 in stock
Park Royal
10 in stock
Staples Corner
57 in stock
West Hampstead
5 in stock

Product Information

This 1mm² 3 Core and Earth Cable comes in a 100m drum and is a surface wiring cable with plain annealed copper conductors, PVC insulated cores and a PVC sheath.

Key Features

  • 6243y includes brown, black and grey cores alongside a bare earth
  • Solid annealed copper conductors
  • Flat shape for easy installation
  • Has a grey PVC outer sheath
  • Copper conductor
  • Plain annealed
  • PVC insulated

Technical Information

  • Maximum Conductor DC Resistance at 20°C: 18.1ohm/km
  • Current Carrying Capacity In Conduit: 19A
  • Overall Diameter Range: 4.1 - 10mm
  • Current Carrying Capacity In Air: 13A
  • Temperature Limits : -15°C - +70°C
  • Short Circuit Temperature: 160°C
  • Oversheath Thickness: 0.9mm
  • Insulation Thickness: 0.6mm
  • Core Colours: Brown, Black, Grey
  • Sheath Colour: Grey
  • Cores: 3 Core, Earth
  • Cable Length: 100m
  • Size: 1mm

Matching Products

Approvals

  • Spark Test for Insulations and Oversheath: BS 5099, EN 62230
  • Flame Propagation to EN 60332-1-2
  • 300 / 500V to BS6004
  • BASEC Approved
  • ISO 9001:2008
  • BS 6004:2012

Also Available

Product Specifications

Technical Specification
Brand: Builder Depot
MPN: 13CE
Size: 1mm
Cores: 3 Core + Earth
Length: 100m Reel
