- Gyproc CoreBoard 19mm forms the shaft face in British Gypsum GypWall Shaft and GypCeiling Shaft systems
- Glass fibre reinforced fire core with water-repellent additives
- Type D, F, and H1 board, A2-s1,d0 reaction to fire
- Held in place by Gypframe retaining channels
- 3000 x 598mm, 19mm thick, square edge
Product Information

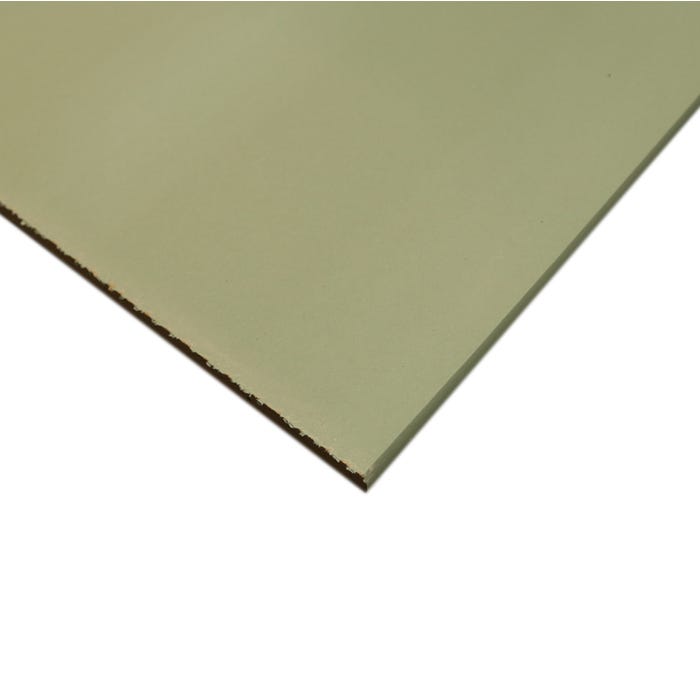

Gyproc CoreBoard (19mm) is a Type D, F, and H1 plasterboard made to BS EN 520. It is used to form the shaft face in British Gypsum GypWall Shaft and GypCeiling Shaft systems. Its gypsum core is reinforced with glass fibre, with water-repellent additives throughout the core for moisture resistance. Supplied in a 598 x 3000mm sheet with a square edge, it is held in place by Gypframe retaining channels.
Key Features
- Glass fibre reinforcement and fire additives in the gypsum core give the fire properties needed for shaftwall systems
- 598mm width slots into Gypframe retaining channels to build the shaft wall
- Water-repellent additives throughout the core give H1 moisture resistance
- Forms the shaft face in GypWall Shaft and GypCeiling Shaft systems
- A2-s1, d0 reaction to fire for a limited-combustibility board
- Type D, F, and H1 board to BS EN 520
Technical Information
- Water Resistance (max absorption): 5%
- Max Continuous Temperature: 49°C
- Thermal Conductivity: 0.24 W/mK
- Water Vapour Resistance (μ): 10
- Board Size: 3000 x 598mm
- Reaction to Fire: A2-s1, d0
- Moisture Resistance: H1
- Min Weight: 16kg/m²
- Thickness: 19mm
- Edge: Square
- Type: D, F, H1
Approvals
- BES 6001 responsible sourcing: Excellent
- EN 520:2004+A1:2009
Product Specifications
| Brand: | British Gypsum |
|---|---|
| MPN: | BGCB |
| Pack Size: | 1 |
| Size: | 598mm x 3000mm x 19mm |
