16mm Single Core Earth Cable 50m Drum 6491X

SKU
L012959
Quantity Discount

16mm Single Core Earth Cable 50m Drum 6491X

Out of stock online
SKU
L012959
Click & Collect

Need More, Save More

  • Up to 1£100.81Inc VAT
  • 2 & Over £97.79 Inc VAT
£100.81 Inc VAT
£2.02 Per M

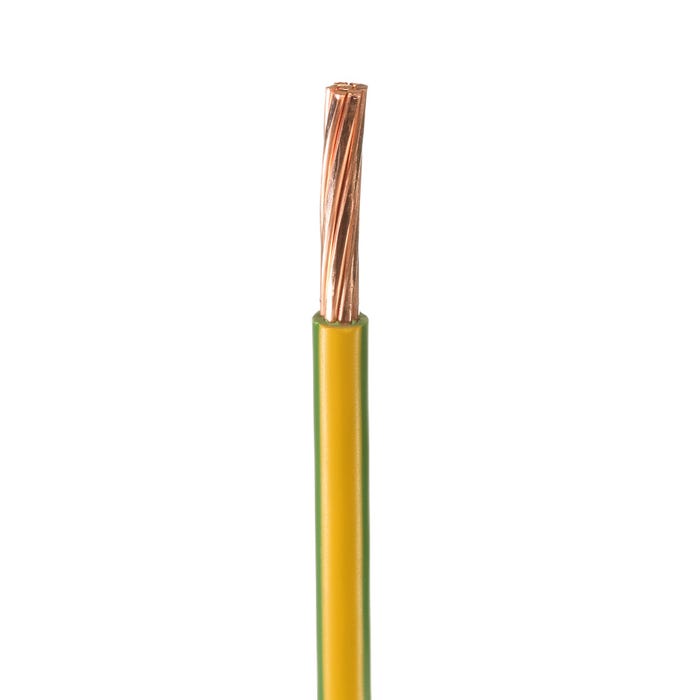

  • This 16mm² single core earth cable comes in a 50m drum
  • This 6491X cable has a green/yellow PVC sheath
  • Suitable for domestic wiring applications
  • Plain annealed copper conductor
  • 7 strands per core
New Southgate
0 in stock
Park Royal
0 in stock
Staples Corner
4 in stock
West Hampstead
0 in stock

Product Information

This 16mm² Single Core Earth Cable is suitable for power and lighting circuits, building wiring, use in conduits and closed installation ducts and internal appliance wiring. The 6491X cable comes in a 50m drum.

Key Features

  • Suitable for use in closed installation ducts, embedded conduits and semi-flush exposed conduits
  • Can be used for building wiring and power and lighting circuits
  • Circular plain annealed copper conductor
  • Ideal for domestic wiring purposes
  • 7 strands per core
  • Green/yellow PVC sheath

Technical Information

  • Minimum Bending Radius: 3 x Overall Diameter
  • Maximum DC Resistance At 20°C: 1.15 O/km
  • Temperature Limit: -15°C - +70°C
  • Insulation Thickness: 1mm
  • Voltage Rating: 300/500V
  • Overall Diameter: 7.8mm²
  • Sheath Colour: Green/Yellow
  • Cable Size: 16mm²
  • Length: 50m
  • Cores: 1

Matching Products

Approvals

  • BS EN 60228, 50363-3,
  • SABS 1411-2, 1507-2
  • BASEC Approved
  • DIN VDE 0281-3
  • HD 383.1, 21.1
  • NF C 32-202-3
  • SS 358: Part 3
  • IEC 60227-1
  • BS 6004

Product Specifications

Technical Specification
Brand: Builder Depot
MPN: 16XGY5
Size: 16mm
Cores: 1 Core
Length: 50m Reel
