16mm 5 Core Armoured Cable Per Metre SWA XLPE is available to buy in increments of 5
Quantity Discount
- Up to 49£13.02Inc VAT
- 50 to 99 £11.94 Inc VAT
- 100 & Over £11.46 Inc VAT
£13.02
Inc VAT
£13.02 Per M

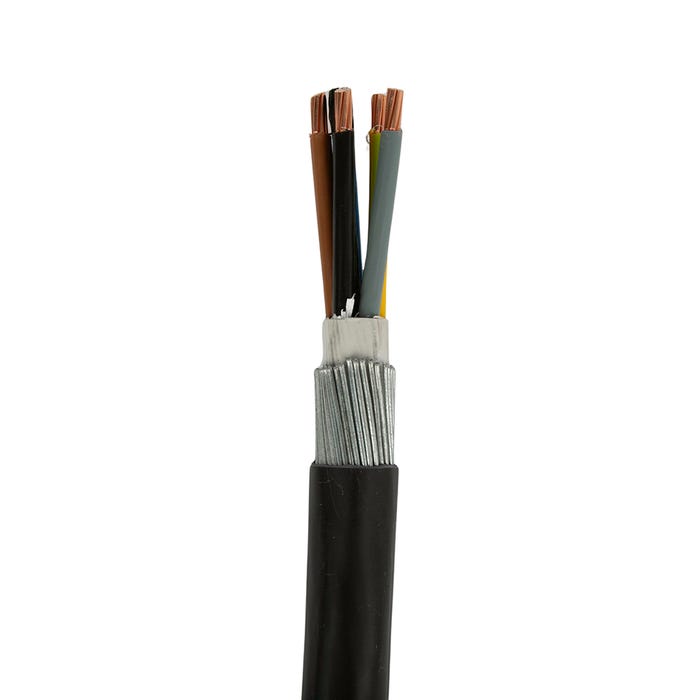

- This 5 core armoured cable has galvanised steel wire armour and a black PVC outer sheath
- The 16mm² armoured cable has black, brown, blue, green/yellow and grey cores
- Ideal for mains supply and use in cable ducting, both indoors, outdoors and underground
- The XLPE cable features stranded plain annealed copper conductors
- Sold per metre
Product Information
This 16mm² 5 Core Armoured Cable is constructed with a layer of steel wire armour. The armour sits below the cable sheath to provide protection to the conductor and insulating layers. The 16mm 5 Core armoured cable is also known as SWA (Steel Wired Armoured) cable. It is designed for mains supply electricity, both externally and buried underground.
Key Features
- XLPE is commonly used for power networks and in cable ducting
- Stranded plain annealed copper conductors
- Galvanised steel wire armour
- PVC outer sheath
- XLPE insulated
- PVC bedding
Technical Information
- Insulation: Cross Link Polyethylene (XLPE)
- Core Identification: Brown, Black, Grey, Blue, Green/Yellow
- Temperature Limits: -20°C To +90°C
- Conductor: Class 2 Stranded Copper
- Bedding: Polyvinyl Chloride (PVC)
- Armour: Steel Wire Armour (SWA)
- Sheath: Polyvinyl Chloride (PVC)
- Voltage Rating: 600/1000V
- Conductor Size: 16mm²
- Sheath Colour: Black
- Cores: 5
Matching Products
Approvals
- Flame propagation to BS EN 60332-1
- BASEC approved
- BS EN 60228
- BS 5467
Installation Instructions
- Do not install this cable at temperatures below 0°C or above 60°C
Product Disclaimer
- Please note that the cable size in the product name refers to the cross-sectional area of the conductors. The overall cable diameter, including insulation and sheath, will be larger than the stated conductor size.
Product Specifications
| Brand: | Builder Depot |
|---|---|
| MPN: | XLPE5X16 |
| Pack Size: | 1 |
| Cable Length: | Per Metre |
| Cable Type: | SWA |
| Colour: | Black |
| Cores: | 5 Core |
| Size: | 16mm |
| Shipping Weight Kg: | 1.269 kg |
| Shipping Dimension 1: | 500 mm |
| Shipping Dimension 2: | 500 mm |
| Shipping Dimension 3: | 22 mm |
