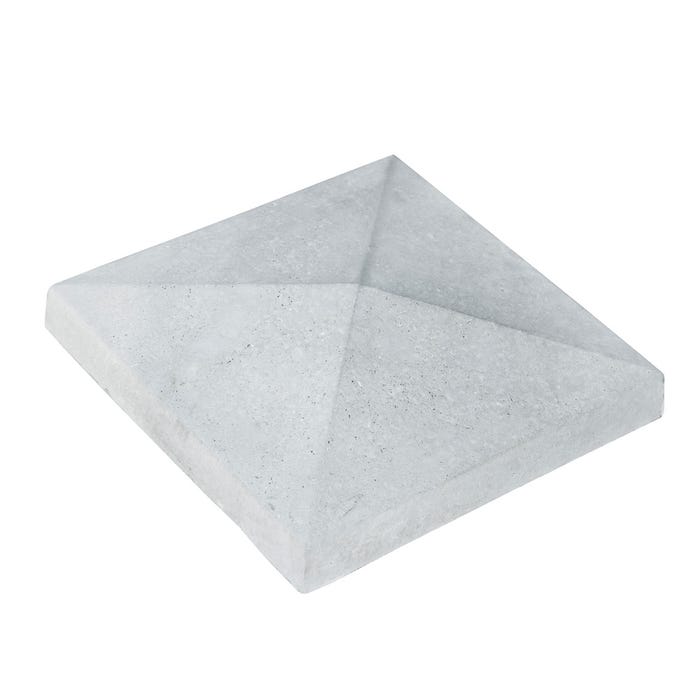

Four Way Concrete Weathered Pier Caps are smooth grey concrete capping used on brick piers in walling applications. They enable water to be dispersed away from brickwork as they have a drip formed under the cap. The caps also have the added benefit of a decorative finish to an unsightly brick pier. Also, they can be decorated, if required, to match existing features at the property. They are available in multiple sizes to suit all brickwork sizes.

Key Features

• Smooth concrete
• Four way weathered
• Drip former
• Decorative
• Multiple sizes

Application
Pier caps and wall caps can be glued down using either a mortar mix or cement based tile adhesive (as per the manufacturer's instructions).Mix 2 litres latex bonding agent , 4kg neat cement, and 2Lt water, then mix thoroughly. Brush this mix on the underside of the capping bed allowing 8-10 mm joints using a string line to stay straight. If the capping butts into any other surface use an expansion joint material, such as Sikaflex. Allow for expansion joints every 4 metres as per industry standards. Make sure any mortar or other material is sponged off the product immediately to prevent staining. Joints can be grouted using colour matching grout, or a mix of fine white sand and white cement. It is recommended that an experienced installer is called upon to install all pier and wall capping.

Technical data
BS EN ISO 14001: 2004 EMS 546362 and BS EN ISO 9001: 2008 FM 12438.
