SKU
H001021
Click & Collect
£130.40
Inc VAT
£54.34 Per M
- This prestressed concrete lintel is suitable for load-bearing over window and door openings in brickwork
- Made from lightweight aggregate concrete for easier handling and thermal efficiency
- Textured finish provides a strong key for bonding with mortar and plaster
- Reversible profile allows installation either way up
- Prestressed for enhanced strength
- 140 x 215 x 2400mm
Product Information

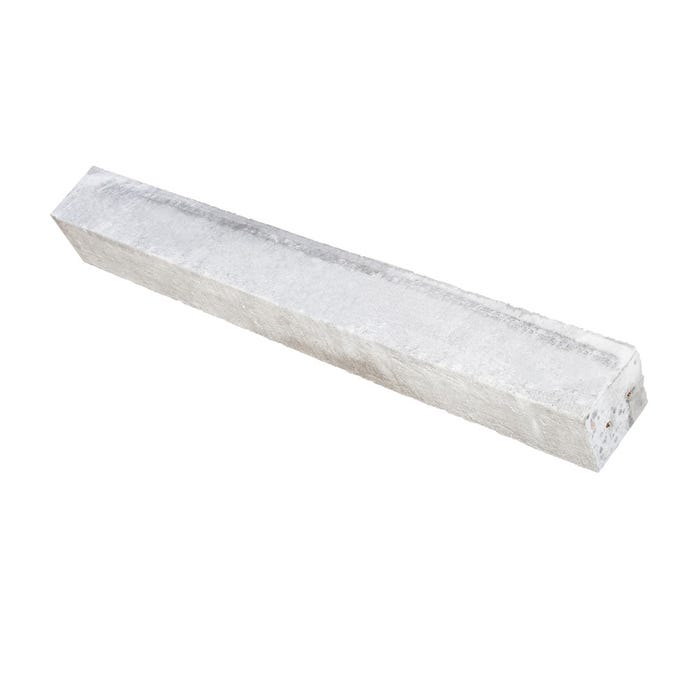

This 140 x 215 x 2400mm Textured Prestressed Concrete Lintel is a reversible support made from lightweight aggregate designed for load-bearing above window and door openings. Manufactured with Ibstock's premium concrete technology, its coarse textured finish bonds well to mortar and plaster, whilst the prestressed core carries significant masonry loads.
Key Features
- Manufactured from lightweight aggregate concrete, reducing handling effort and improving resistance to heat transfer
- Prestressed design delivers superior load-bearing performance for window and door openings in masonry walls
- Reversible profile allows installation either way up for on-site flexibility and minimised stockholding
- Coarse textured finish offers an excellent key for mortar, blending neatly with standard brickwork
- Suitable for use as a padstone beneath steel beams or for bridging manhole chamber openings
Technical Information
- Prestressing Strands: 9.3mm and 7.9mm high-tensile wires in accordance with BS 3617
- Concrete Cube Strength: 50 N/mm² at 28 days
- Overall Size: 140mm x 215mm x 2400mm
- Brand: Ibstock Supreme Concrete
- Approximate Weight: 153.2kg
- Fire Rating: 30-60 minutes
- Finish: Coarse
Approvals
- Eurocode 2 EN 1992-1-1-:2004
- BS EN 845-2:2013
- EN 1991-1-1
- BSI Kitemark
- EN 1990
- UKCA
Also Available
- Complementary padstones are available to match this lintel size and loading class
Product Specifications
| Brand: | Supreme Concrete |
|---|---|
| MPN: | R21240 |
| Pack Size: | 1 |
| Width: | 215mm |
| Length: | 2400mm |
| Depth: | 140mm |
| Size: | (W): 215mm (L): 2400mm (D): 140mm |
