10mm Low Smoke Zero Halogen Twin & Earth Cable 50m Drum 6242B

SKU
L074719

10mm Low Smoke Zero Halogen Twin & Earth Cable 50m Drum 6242B

SKU
L074719
£198.20 Inc VAT
£3.96 Per M
  • Low smoke, zero halogen, flame retardant cable
  • 10mm² twin and earth
  • Copper conductor
  • 6242b 50m drum

Product Information

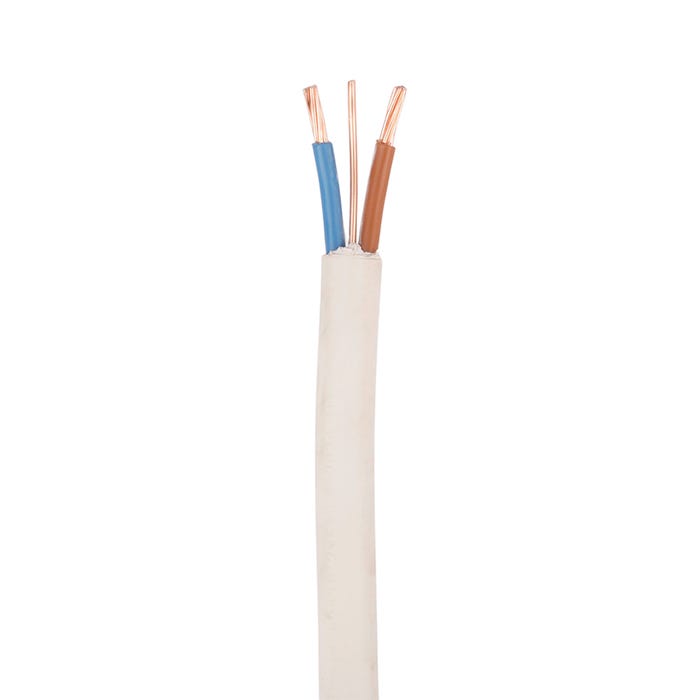

This 10mm² Low Smoke Zero Halogen Twin and Earth Cable comes in a 50m drum. 10mm twin and earth is commonly used for domestic and lighting wiring applications.

Key Features

  • Low smoke, zero halogen, flame retardant
  • Blue and brown core identification
  • The sheath has LSZH properties
  • Flat shape for easier installation
  • The cores have XLPE insulation
  • 10mm twin and earth
  • Copper conductor
  • Bare earth

Technical Information

  • Maximum Conductor DC Resistance at 20°C: 1.83/4.61ohm/km
  • Maximum Operating Temperature: 90 Degrees Celsius
  • Short Circuit Temperature: 250 Degrees Celsius
  • Current Carrying Capacity In Conduit: 80A
  • Current Carrying Capacity In Air: 69A
  • Oversheath Thickness: 1.2mm
  • Insulation Thickness: 0.7mm
  • Voltage Rating: 300/500V
  • Core Colour: Brown, Blue
  • Cores: 2 Core & Earth
  • Sheath Colour: White
  • Cable Length: 50m
  • Cable Size: 10mm²

Approvals

  • Spark Test for Insulations and Oversheath: BS 5099 and EN 62230
  • Flame Propagation Test: EN 60332-1-2
  • BASEC Approved
  • BS 7211:2012

Product Disclaimer

  • Please note that the cable size in the product name refers to the cross-sectional area of the conductors. The overall cable diameter, including insulation and sheath, will be larger than the stated conductor size.

Product Specifications

Technical Specification
Brand: Builder Depot
MPN: 10BW5
Pack Size: 50
Cable Length: 50m Reel
Colour: White
Cores: 2 Core + Earth
Size: 10mm
Shipping Weight Kg: 20.59 kg
Shipping Dimension 1: 255 mm
Shipping Dimension 2: 255 mm
Shipping Dimension 3: 245 mm

  • Lead time of 2-3 Working Days
  • This product is dispatched from Builder Depot and is available for in-store purchase.
  • This product will usually be delivered via third party courier.
  • Orders received by 11:00am are processed the same working day.
  • Your delivery charge will be displayed in the trolley page and checkout prior to purchase.
  • Once the order has been dispatched you will be sent relevant tracking information.
  • This item is eligible for returns as per our Returns Policy.
  • For larger and heavier products please ensure you have adequate labor onsite to accept the goods and offload.
