1.5mm Single Core Earth Cable 100m Drum 6491X

SKU
L010020
Quantity Discount

1.5mm Single Core Earth Cable 100m Drum 6491X

In stock
SKU
L010020
Click & Collect

Need More, Save More

  • Up to 1£20.38Inc VAT
  • 2 & Over £19.75 Inc VAT
£20.38 Inc VAT
£0.20 Per M

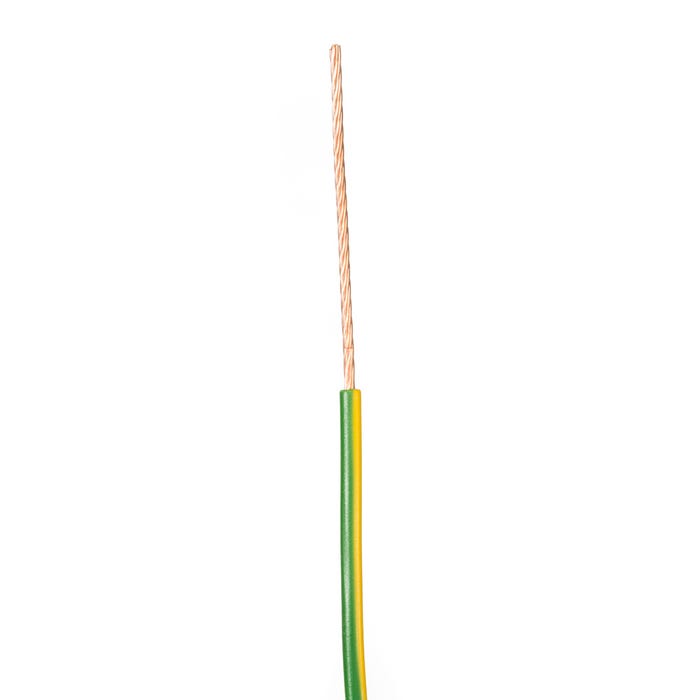

  • This 1.5mm² single core earth cable comes in a 100m drum
  • This 6491X cable has a green/yellow PVC sheath
  • Suitable for domestic wiring applications
  • Plain annealed copper conductor
  • 7 strands per core
4 In Stock
New Southgate
5 in stock
Staples Corner
0 in stock

Product Information

This 1.5mm² Single Core Earth Cable is suitable for power and lighting circuits, building wiring, use in conduits and closed installation ducts and internal appliance wiring. The 6491X cable comes in a 100m drum.

Key Features

  • Suitable for use in closed installation ducts, embedded conduits and semi-flush exposed conduits
  • Can be used for building wiring and power and lighting circuits
  • Circular plain annealed copper conductor
  • Ideal for domestic wiring purposes
  • 7 strands per core
  • Green/yellow PVC sheath

Technical Information

  • Minimum Bending Radius: 3 x Overall Diameter
  • Maximum DC Resistance At 20°C: 12.1 O/km
  • Temperature Limit: -15°C - +70°C
  • Insulation Thickness: 0.7mm
  • Voltage Rating: 300/500V
  • Overall Diameter: 3mm²
  • Stranding: 7 / 0.53mm²
  • Sheath Colour: Green/Yellow
  • Cable Size: 1.5mm²
  • Length: 100m
  • Cores: 1

Matching Products

Approvals

  • BS EN 60228, 50363-3,
  • SABS 1411-2, 1507-2
  • BASEC Approved
  • DIN VDE 0281-3
  • HD 383.1, 21.1
  • NF C 32-202-3
  • SS 358: Part 3
  • IEC 60227-1
  • BS 6004

Product Specifications

Technical Specification
Brand: Builder Depot
MPN: 1.5XGY
Size: 1.5mm
Cores: 1 Core
Length: 100m Reel
