In stock
SKU
L010921
Click & Collect
Need More, Save More
- Up to 1£50.56Inc VAT
- 2 & Over £49.06 Inc VAT
£50.56
Inc VAT
£1.01 Per M

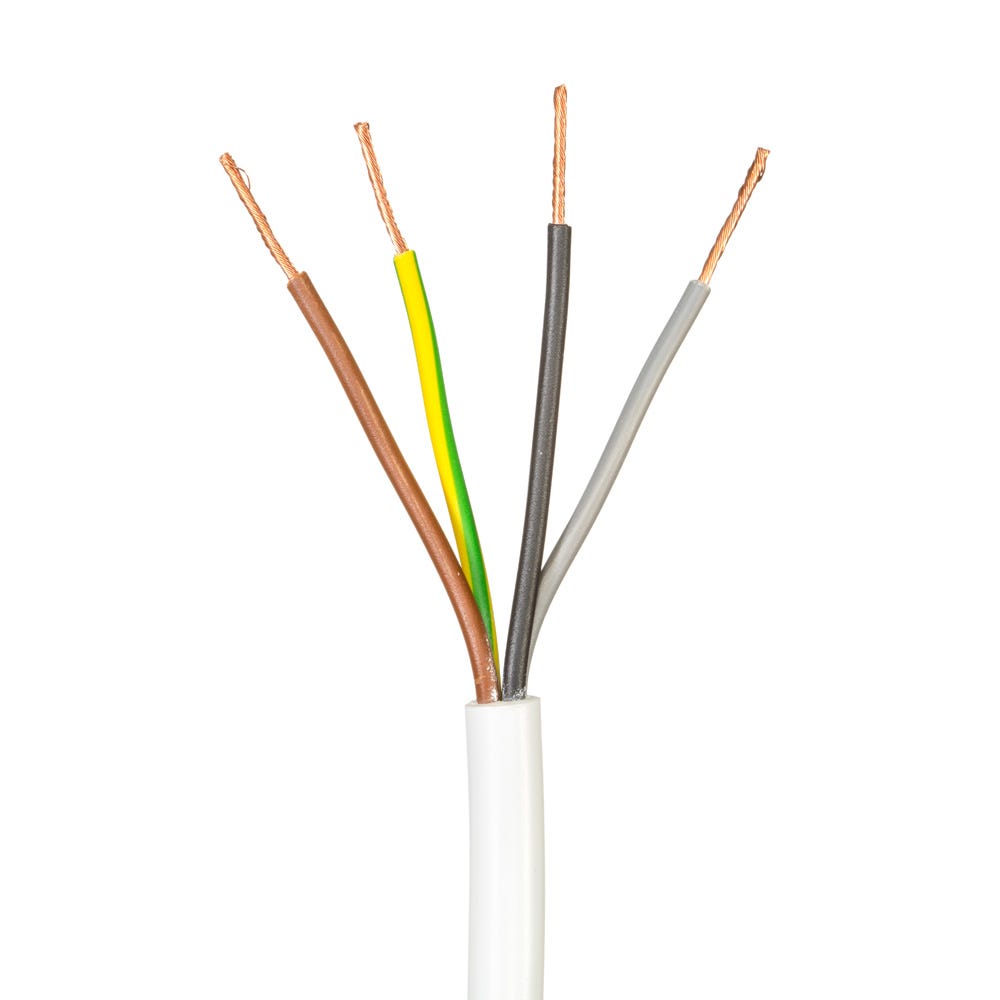

- This 1.5mm² 4 Core Flex Cable has a round profile
- Brown, green/yellow, grey and black cores
- Multi-stranded copper conductors
- 3184Y cable 50m drum
- White PVC sheath
Product Information
This 1.5mm² 4 Core Flex Cable is ideal for installations with challenging cable positioning as 3184Y cable is built to withstand bending. This flex cable comes in a 50m drum.
Key Features
- Has 4 cores - brown, green/yellow, grey and black
- Multi-stranded copper conductors
- Designed for flexible installations
- Flexible white PVC sheath
- Round profile
Technical Information
- Core Colour: Brown, Black, Green/Yellow, Grey
- Maximum Operating Temperature: +70°C
- Conductor Resistance: 13.3 Ohm/km
- Insulation Thickness: 0.7mm
- Sheath Thickness: 1mm
- Overall Diameter: 9mm
- Rated Voltage: 300/500V
- Conductor Size: 1.5mm
- Sheath Colour: White
- Length: 50m
- Cores: 4
Matching Products
Approvals
- EN 50577:2014/A1:2016
- BS EN 50525-2-11:2011
- BASEC Approved
- HAR Approved
- EN 60228
Product Specifications
| Brand: | Builder Depot |
|---|---|
| MPN: | 1.534W5 |
| Size: | 1.5mm |
| Cores: | 4 Core |
| Length: | 50m Reel |
