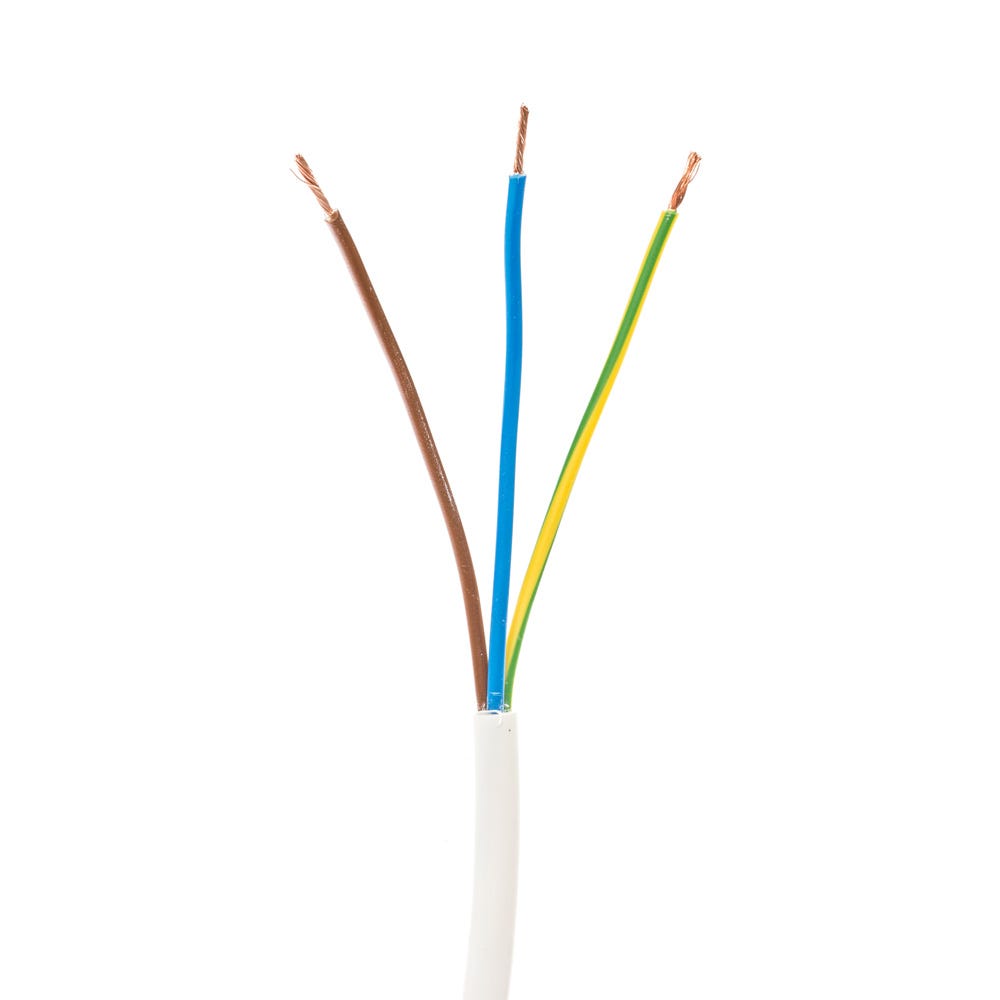

- This 1.5mm² 3 Core Flex Cable has a round profile
- Brown, green/yellow and blue cores
- Multi-stranded copper conductors
- 3183Y cable 100m drum
- White PVC sheath
Product Information
This 1.5mm² 3 Core Flex Cable is ideal for installations with challenging cable positioning as 3183Y cable is built to withstand bending. This flex cable comes in a 100m drum.
Key Features
- Has 3 cores - brown, green/yellow and blue
- Multi-stranded copper conductors
- Designed for flexible installations
- Flexible white PVC sheath
- Round profile
Technical Information
- Maximum Operating Temperature: +70°C
- Core Colour: Brown, Blue, Green/Yellow
- Conductor Resistance: 13.3 Ohm/km
- Insulation Thickness: 0.7mm
- Sheath Thickness: 0.9mm
- Overall Diameter: 8.2mm
- Rated Voltage: 300/500V
- Conductor Size: 1.5mm
- Sheath Colour: White
- Length: 100m
- Cores: 3
Matching Products
Approvals
- EN 50577:2014/A1:2016
- BS EN 50525-2-11:2011
- BASEC Approved
- HAR Approved
- EN 60228
Also Available
Product Specifications
Brand: | Builder Depot |
---|---|
MPN: | 1.533W |
Size: | 1.5mm |
Cores: | 3 Core |
Length: | 100m Reel |
