1.5mm 3 Core Flex Arctic Cable Blue 100m Drum 3183AG

SKU
L010001
Quantity Discount

1.5mm 3 Core Flex Arctic Cable Blue 100m Drum 3183AG

In stock
SKU
L010001
Click & Collect

Need More, Save More

  • Up to 1£69.25Inc VAT
  • 2 & Over £68.48 Inc VAT
£69.25 Inc VAT
£0.70 Per M

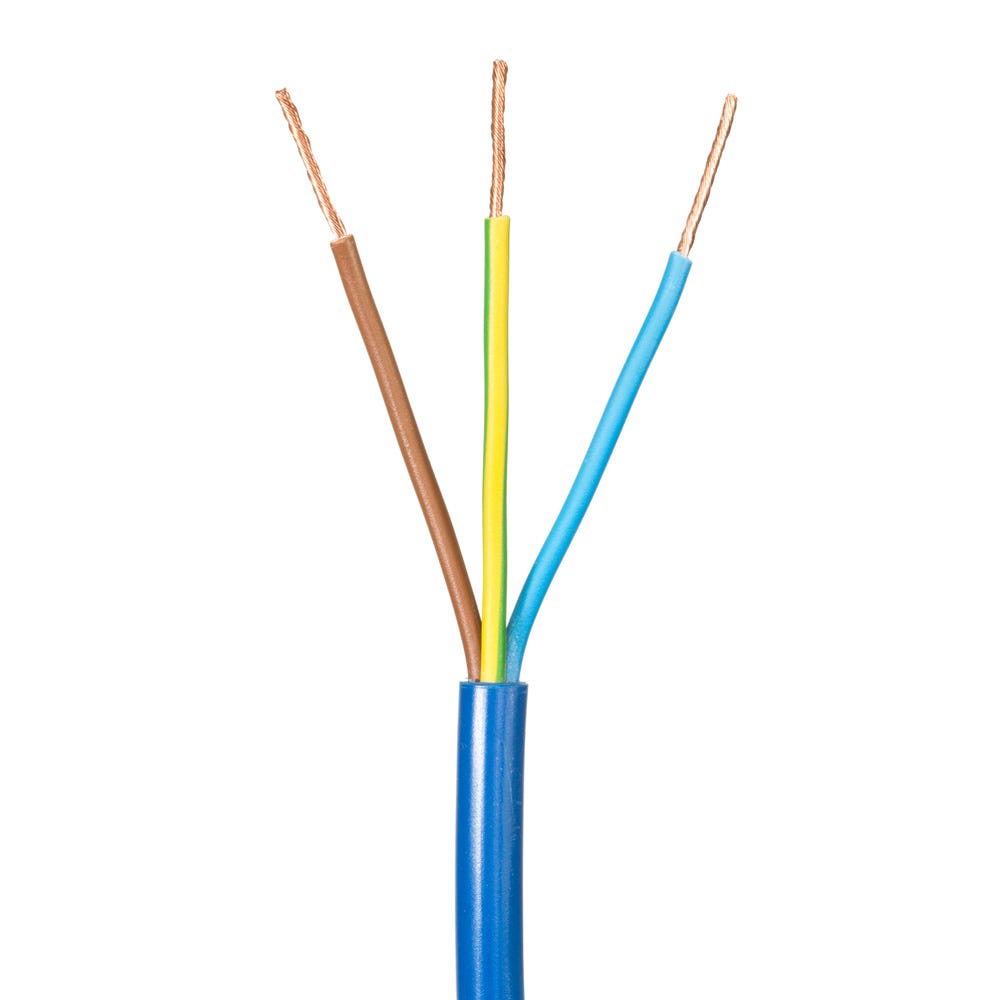

  • This 1.5mm² 3 Core Flex Arctic Cable withstands temperatures as low as -40°C whilst remaining flexible
  • Flexible multi-stranded copper conductors
  • Brown, blue and green/yellow cores
  • 3183AG cable 100m drum
  • Flexible blue PVC sheath
2 In Stock
New Southgate
2 in stock

Product Information

This 1.5mm² 3 Core Flex Arctic Cable is suitable for outdoor applications as the cable withstands cold temperatures down to -40°C whilst remaining flexible. This 3183AG cable comes in a 100m drum.

Key Features

  • Cold-resistant, remaining flexible down to -40°C
  • Can be used for site lighting and transformers
  • Multi-stranded flexible copper conductors
  • 3 cores - blue, brown and green/yellow
  • Flexible blue PVC sheath

Technical Information

  • Maximum Conductor Resistance At 20°C: 13.3 ohm/km
  • Core Colours: Blue, Brown, Green/Yellow
  • Temperature Range: -40°C To +70°C
  • Short Circuit Temperature: 160°C
  • Oversheath Thickness: 0.9mm
  • Insulation Thickness: 0.7mm
  • Voltage Rating: 300/500V
  • Overall Diameter: 8.1mm
  • Conductor Size: 1.5mm
  • Sheath Colour: Blue
  • Length: 100m
  • Cores: 3

Matching Products

Approvals

  • Voltage Test: 2 kV AC in water at 20°C for 15 minutes
  • Spark Test For Insulation: BS 5099, EN 62230
  • Flame Propagation Test: EN 60332-1-2
  • BS EN 50363-3:2005
  • BASEC Approved
  • BS 6004:2012
  • EN 60228

Product Specifications

Technical Specification
Brand: Builder Depot
MPN: 1.5AB
Size: 1.5mm
Cores: 3 Core
Length: 100m Reel
